Our specialized Application Center continues to expand our library of
laser-applicable materials. A wider range of material applications
allows you to be creative without being limited.


Standard Features

Image 01

Hybrid servo motor

1000mm/s speed for engraving photo, super smooth vector cutting quality.

Image 01

Smart board

Control the exhaust fan,air assist, and alarm lamp automaticly, energy saving

Image 01

Laser software

RDWorksV8 laser software.

Image 01

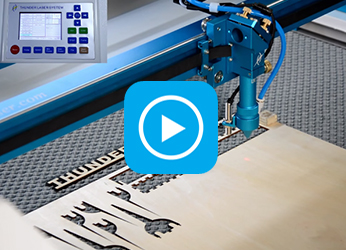

LCD panel

Set speed, power, and more directly from the LCD panel.

Image 01

Auto focus

Help the user to set focus Easier. (based on motorized table)

Image 01

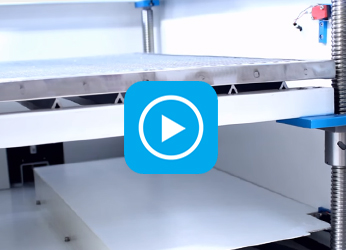

Motorized table

Control the table up/down from LCD panel directly

Image 01

Honey comb table

Reduces underside reflections.

Image 01

Aluminum blade cutting table

Reduce the influence of the reflection of laser.

Image 01

3D Engrave

Engrave high quality 3D photos directly.

Image 01

3D cutting

Achieve “3D cutting” on some materials

Image 01

Parameter library

Help you to save times.

Image 01

Color mapping

Change the working speeds and power by using color settings.

Image 01

Visible Red Dot Pointer

Make the laser beam “visible”.

Image 01

High quality laser tube

Every laser tube must pass the strict quality control test.

Image 01

High quality optics

High quality optics.

Image 01

Mirror mount

Thunderlaser easily re-adjusting 3D mirror mounts.

Image 01

Connection ways

High-speed Ethernet line or the USB cable line.

Image 01

USB disk interface

Thunder laser system supports the USB disk loading.

Image 01

Free Home position

Freely change the starting position.

Image 01

Large buffer memory

You can take the file directly from the memory.

Image 01

Emergency stop

Turn off the machine immediately when there is an accident.

Image 01

Open flap protection

Laser will stop working if you open the front cover.

Image 01

Water protection

Laser will stop working if the water cooling system is not working

Image 01

Alarm Lamp

Show the work state and tell when the job is done, more safe for you.

Image 01

Standard laser head

It is the most often used head.

Image 01

Air assist

Blowing air to prevent the material being burned

Image 01

The strong machine case

Improve the laser machine performance.

Image 01

Exhaust system

Ensure the work pieces and laser cutter machine inside be clean.

Image 01

Drive belts

This belt is stable performance with long life, wearable and durable.

Image 01

Low-noise cooling fan

Operate the laser in a quiet and comfortable surroundings.

Image 01

High quality rails

Keep the engraving/cutting precise and very durable.

Technical Specifications

Laser System NOVA 35 NOVA 51 NOVA 63
Laser Tube Wattage 80-130Watt 100-130Watt 100-150Watt
Work Area 900x600mm(35.4″ x 23.6″) 1300x900mm(51.2″x35.4″) 1600x1000mm(63.0″x39.4″)
Max Part Size (WxLxH) Front door closed

1000x730x230mm(39.4″ x 28.7″ x9.0″)

1400x1030x230mm(55.1″ x 40.6″ x9.0″)

1700x1130x230mm(66.9″ x 44.5″ x9.0″)

Pass-through door

1000x∞x20mm(39.4″ x ∞” x0.8″)

1400x∞x20mm(55.1″ x ∞” x0.8″)

1700x∞x20mm(66.9″ x ∞” x0.8″)

Table Size 1000x730mm(39.4″ x 28.7″) 1400x1030mm(55.1″ x40.6″) 1700x1130mm(66.9″ x 44.5″)
Z Axis Height 230mm(9.1″) 230mm(9.1″) 230mm(9.1″)

1500x1105x1040mm(59.1″ x 43.5″ x40.9″)

1900x1405x1040mm(74.8″ x 55.3″ x40.9″)

2200x1505x1040mm(86.6″ x 59.3″ x40.9″)

Net Weight 310kgs(683lbs) 430kgs(948lbs) 470kgs(1036lbs)
Laser Type Sealed Co2 Glass Laser Tube
Cooling Water Cooled
Motion Control System High-Speed Hybrid servo motor
Maximum Speed 1000mm/S(39.4 IPS)
Speed and Power Control (engraving depth) Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
Operating Modes Optimized raster, vector, and combined mode
Resolution(DPI) User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer Interface Ethernet and USB Connection
Compatible Operating Systems Windows XP/2000/Vista/7/8/10
Buffer Memory 128MB Standard
Display Panel 3.5″ LCD panel showing current file, total working time, laser power, speed etc.
Electrical Requirements 110 to 240 volts, 50 or 60 Hz, single phase
Ventilation System Integral exhaust fan.There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.
Standard Features Red dot pointer, Auto focus, Motorized table, Pass-through Door, Air Assist, Water pump ,Exhaust fan, HoneyComb Table, 2″ (50.8 mm) Focus Lens, Easily adjustable Home position, LCD Display,3D Engraving ,”No water” protection, Emergency stop, Maintenance mode, Open cover protection,Hybrid servo motor
Optional Features
High Resolution Head Increase the resolution up to 1000DPI
Rotary Axis Use to engrave on round items
Water Chiller Improve the cooling of laser tube

Machine Size

nova35 size

nova35-100w size

nova51 size

nova63 size

Optional Items

Water Chiller
When the laser tube is working, it will produce a large amount of heat.Since the water chiller has the refrigerating capacity and can adjust the temperature intelligently to keep the temperature within a certain range, there by to ensure the stability of laser working.
Rotary Axis

Rotary engraving equipment was used to extending THUNDERLASER system application, as a optional component, It can be used for cutting and engraving round items…


Heat Alarm Detector
A thermal detector is designed for areas where a fire will be more flame and heat than smoke; areas such as laser cutter and engraver, kitchens, garages and workshops. The small thermal heat detector will also have a 10 year, long life battery…

HR laser head

We named Hight-Resolution head as HR head for short,it’s made by special structure for focusing the laser bean into a much smaller dot,thus we can get more tiny laser dots in a unit area,and the engraving result will be more elaborate…

4″ laser head

4″ laser head owns a longer focal distance than 2″ standard head, thus for cutting thick material, it makes the cutting edge more smooth and straight…

Air compressor

The high pressure and low noise air compressor offered by Thunder Laser co2 laser engraving machine includes two parts: the high pressure and low noise air compressor and the water separator…


If your material is not in the below list, our Applications Team would be happy to assist you to test it.

Materials Engrave Cut


Mat Board

Wood Veneer
Anodized Aluminum X
Painted Metals X
Tile X
Glass X
Coated Metals X
Ceramics X
Marble X
Stainless Steel * X
Brass * X
Titanium * X
Bare Metal * X

* means the laser cannot engrave directly, you will need the help of the “thermark spray”, you can visit www.thermark.com for more information.



No need. We’ve added a parameter library in the software, once you find out what settings is best for a certain material;you can record it in the parameter library. Next time you cut the same material, you just need to read it from the list.
Both ok, as long as your operating system is Windows XP/2000/Vista/7/8/10.
Our laser runs on Windows XP/2000/Vista/7/8/10 both 32bits and 64bits system.

But it does not run on Mac OS.

CorelDraw and AutoCAD are suggested. You can design all your artworks in these two software and then send to the RDWorks software to set the parameters easily.
Yes, you can take a photo by using a camera and then load the photo to the software directly and engrave it.
the laser machine is ready to work, the exhaust fan and the air pump and the water pump are included. (But when you using a big power laser tube, it is suggested to buy a water chiller for cooling the laser tube)



As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too.




No, our laser machine can do both cutting and engraving very well.You just need one machine for both kinds of jobs.
