Thunder Laser Nova51

[High-precision&speed Laser Cutting Machine]

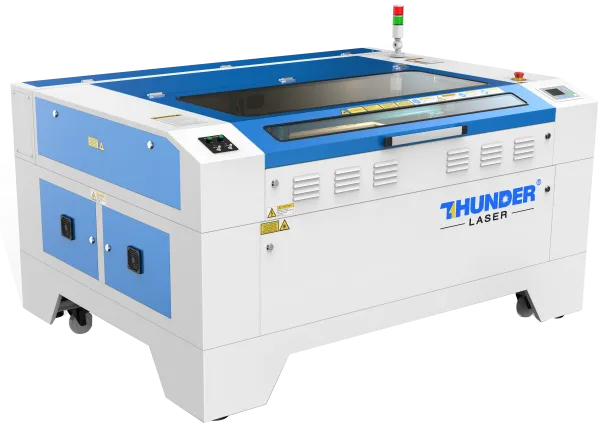

co2 laser cutting machine 51

From $15900

nova51-2
nova51-1
nova51

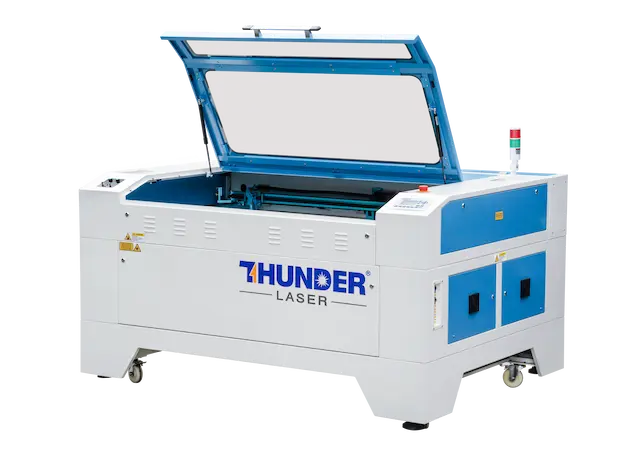

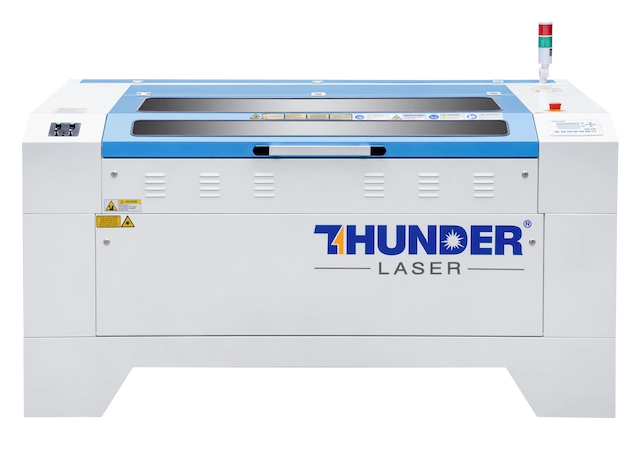

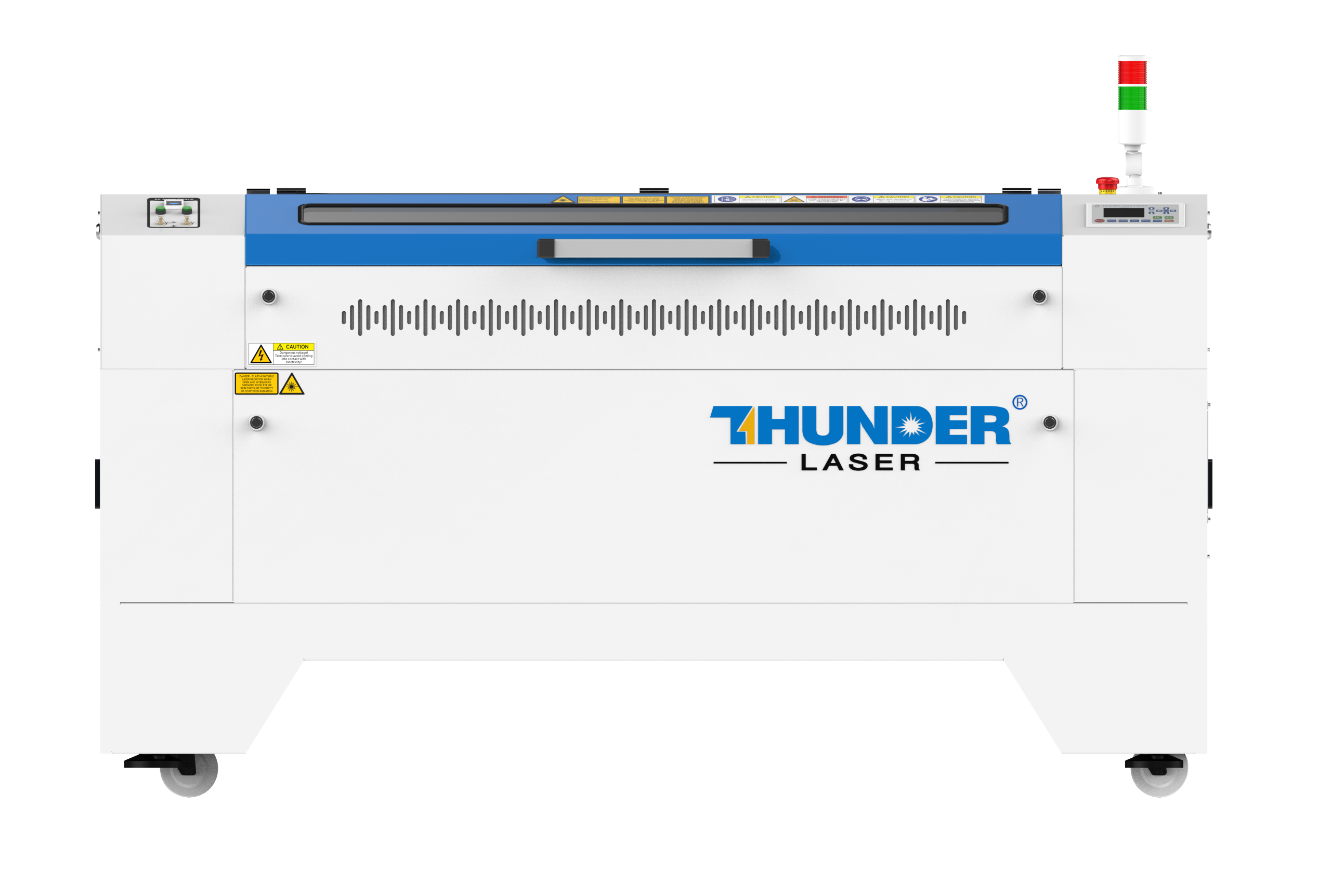

Nova 51

Our Nova 51 laser cutter comes in 100 watt and 130 watt power, features a work area of 1300 x 900 mm, and is large enough to fit a sheet of 4′ x 8′ material using the pass-through.
Unleash your artistic vision and own the pinnacle of laser engraving excellence - Nova51 !

Contact us
nova51-2
nova51-1
nova51

Nova 51

Featuring a low-power glass tube for unparalleled carving effects, elevate your craftsmanship with precision and versatility.
Unleash your artistic vision and own the pinnacle of laser engraving excellence - Nova51!

Nova Brochure.pdf
Contact us
Standard Features

Our Standard Features

Hybrid Servo Motors

1000mm/s speed for engraving photo,super smooth vector cutting quality.

Smart board

Smart Board

Control the exhaust fanair assist and alarm lamp automatically energy saving

Alarm Lamp

Show the work state and tell when the job is done, more safe for you.
Red dot pointer

Red Dot Pointer

Make the laser beam “visible”.

co2 laser australia LCD-Panel

LCD Panel

Set speed, power, and more directly from the LCD panel.
Mirror-mount

Mirror mount

Thunderlaser easily re-adjusting 3D mirror mounts.
Technical Specifications
Laser SystemNOVA 51
Laser Tube Wattage100-130Watt
Work Area1300x900mm(51.2″x35.4″)
Max Part Size (WxLxH)Front door closed1400x1030x230mm(55.1″ x 40.6″ x9.0″)
Pass-through door1400x∞x20mm(55.1″ x ∞” x0.8″)
Table Size1400x1030mm(55.1″ x40.6″)
Z Axis Height155mm(6.1″)
Dimensions(WxDxH)1900x1405x1040mm(74.8″ x 55.3″ x40.9″)
Net Weight430kgs(948lbs)
Laser TypeSealed Co2 Glass Laser Tube
CoolingWater Cooled
Motion Control SystemHigh-Speed Hybrid servo motor
Maximum Speed1000mm/S(39.4 IPS)
Speed and Power Control (engraving depth)Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
Operating ModesOptimized raster, vector, and combined mode
Resolution(DPI)User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer InterfaceEthernet and USB Connection
Compatible Operating SystemsWindows XP/2000/Vista/7/8/10,macOS(Lightburn only)
Buffer Memory128MB Standard
Display Panel3.5″ LCD panel showing current file, total working time, laser power, speed etc.
Electrical Requirements110 to 240 volts, 50 or 60 Hz, single phase
Ventilation SystemNova24, Nova35: 150mm, Nova51,Nova63: 200mm
Materials

If your material is not in the below list, our Applications Team would be happy to assist you to test it.

MaterialsEngrave Cut
Wood√√
Acrylic√√
Delrin√√
Cloth√√
Leather√√
Mat Board√√
Melamine√√
Paper√√
Mylar√√
Pressboard√√
Rubber√√
Wood Veneer√√
Fiberglass√√
Plastic√√
Cork√√
Corian√√
Twill√√
Anodized Aluminum√X
Painted Metals√X
Tile√X
Glass√X
Coated Metals√X
Ceramics√X
Marble√X
Stainless Steel*X
Brass*X
Titanium*X
Bare Metal*X
Machine Size
nova51 size
Optional Items

Optional Items

4” laser head

The 4” laser head is recommended for cutting material thicker than 10mm.

Rotary

A rotary tool allows for engraving cylindrical objects such as glass, wood or metal products like tumblers, cups, mugs, wine bottles or pens

co2 laser HR-head

HR head

Engrave high precision designs, photos, and 3D engraving.

Lightburn DSP License Key

Thunderlaser exclusive lightburn DSP license key

Thunder Laser Nova 51

Our Nova51 laser cutting machine is capable of mass-producing numerous products with lightning speed and unwavering quality. It’s also just as simple to create unique, custom pieces on an ad hoc basis.

  • Large-Scale Capable
  • Speed & Accuracy
  • Australia based customer service

Application

Our engraving and cutting machines empower you to push the boundaries of endless possibilities.

engravingleather
engraving-tumblr
Lasercraft
Laserengraving
leatherengraving

What Our Customers Say About?

Lisa Turnbull

5/5

Nothing short of amazing! After purchasing a “hobby” laser elsewhere 12months ago and never successfully being able to make anything to tonight

Cameron Aimee Oliver Lynam

5/5

Myself and my father bought a nova 35 RF just over a year ago and we are still as happy as the daywe bought it.Mandy and Glen have always been there

Jason Dow

5/5

Great parts, great assembly, great people.Thunder Laser is absolutely the best value for a laser machine!

Belinda Fancett

5/5

I love my machine and thanks to you Glenn for answering every question at anytime of the dayand all the million questions Iasked prior to buying one!

Troy Gilchrist

5/5

Iuse 3 thunderlaser machines at our Local Maker space and I love them! These machines are in constant use and they are holding upvery well!Icame for the woods lab but I’m staying for the lasers!

Elliott Trost

5/5

Could not recommend Thunder Laser’s enough.Not only is the machine reasonably priced and well built but the service that Glenn offered was nothing less than amazing. Cheers guys.

Frequently Asked Questions

1.Do I have to record all the cutting/engraving parameters for different materials in a paper?

No need. We’ve added a parameter library in the software, once you find out what settings is best for a certain material;you can record it in the parameter library. Next time you cut the same material, you just need to read it from the list.

2.What kind of software and hardware do I need to use Thunder Laser?

You can use your Thunder Laser machine from your Mac, PC, and more to connect with it. You’ll just need a USB-PC Cable or Ethernet Cable.



Utilizing software like LightBurn, RDworks, and Adobe Illustrator, you have the capacity to create designs. Thunder Bolt has the capability to print various file formats including JPG, PNG, SVG, PDF， and more. The process of printing a file is as simple as transmitting it to our Laser Machine, followed by fine-tuning the preview according to your preferences.

3.What files is the software compatible with?
JPG, PNG, BMP, PLT, DST, SVG,DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA,PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW

4.Can I take a picture and engrave the image on an object without any hassles?
Yes, you can take a photo by using a camera and then load the photo to the software directly and engrave it.

5.Does machine comes ready to work?
the laser machine is ready to work, the exhaust fan and the air pump and the water pump are included. (But when you using a big power laser tube, it is suggested to buy a water chiller for cooling the laser tube) https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-mini60-laser-system.html https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-nova-laser-cutter.html

6.How much time do I need to spend on learning how to run the laser machine?
As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too. https://www.thunderlaser.com.au/video/what-laser-cutter-can-create.html https://www.thunderlaser.com.au/video/how-to-use-your-laser-machine.html https://www.thunderlaser.com.au/video/how-to-use-your-laser-software.html

7.How to send a job to the machine?
Please watch this video directly to learn the detail https://www.thunderlaser.com.au/video/how-to-use-your-laser-software.html

8.Do I need separate laser systems for engraving and cutting?
No, our laser machine can do both cutting and engraving very well.You just need one machine for both kinds of jobs.
9.What is the warranty on Thunder Laser machines?
Our Laser machines come with a 2-year warranty for parts and a 1-year warranty for consumables. This warranty is backed by the Thuner Laser Australia.
