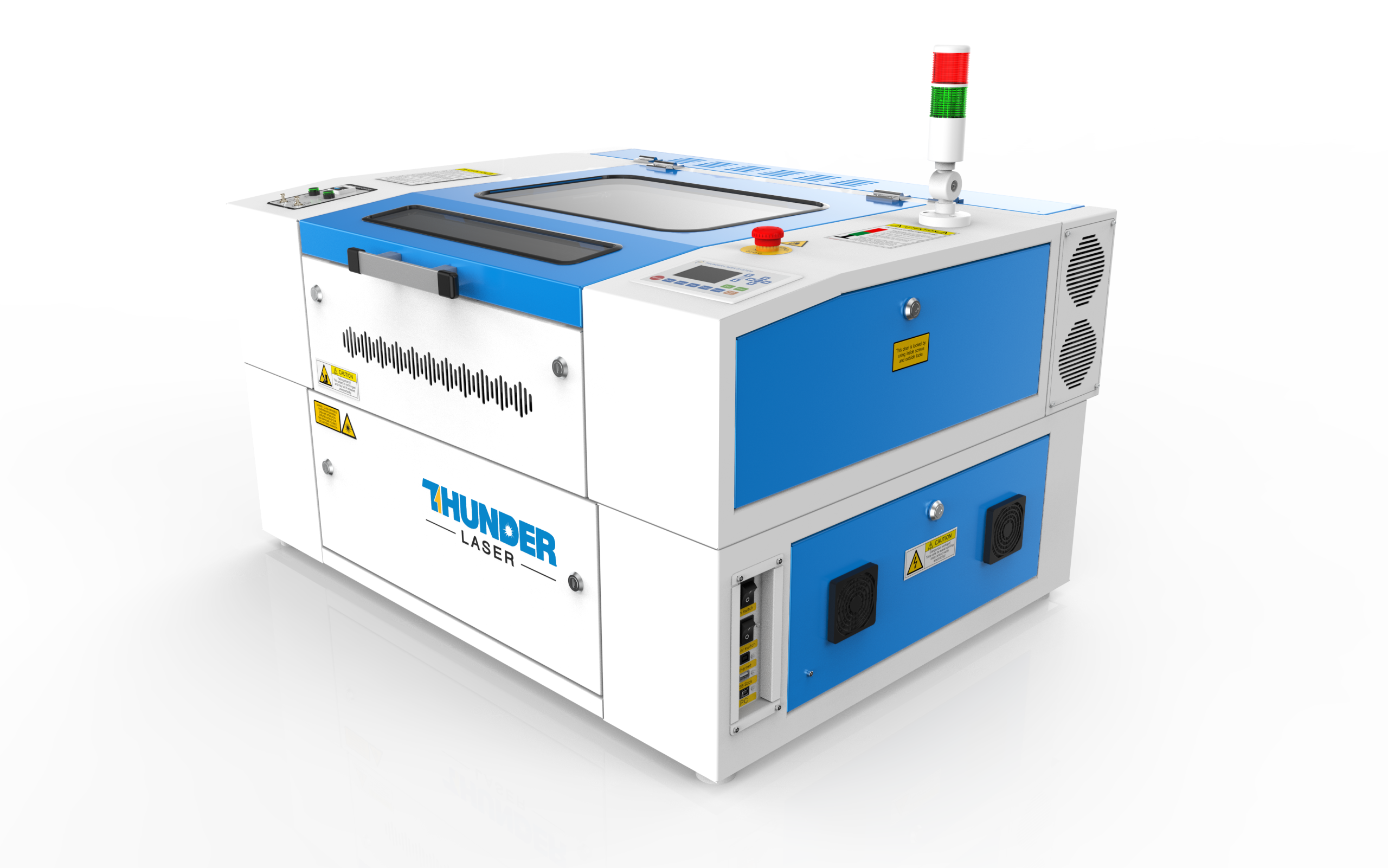

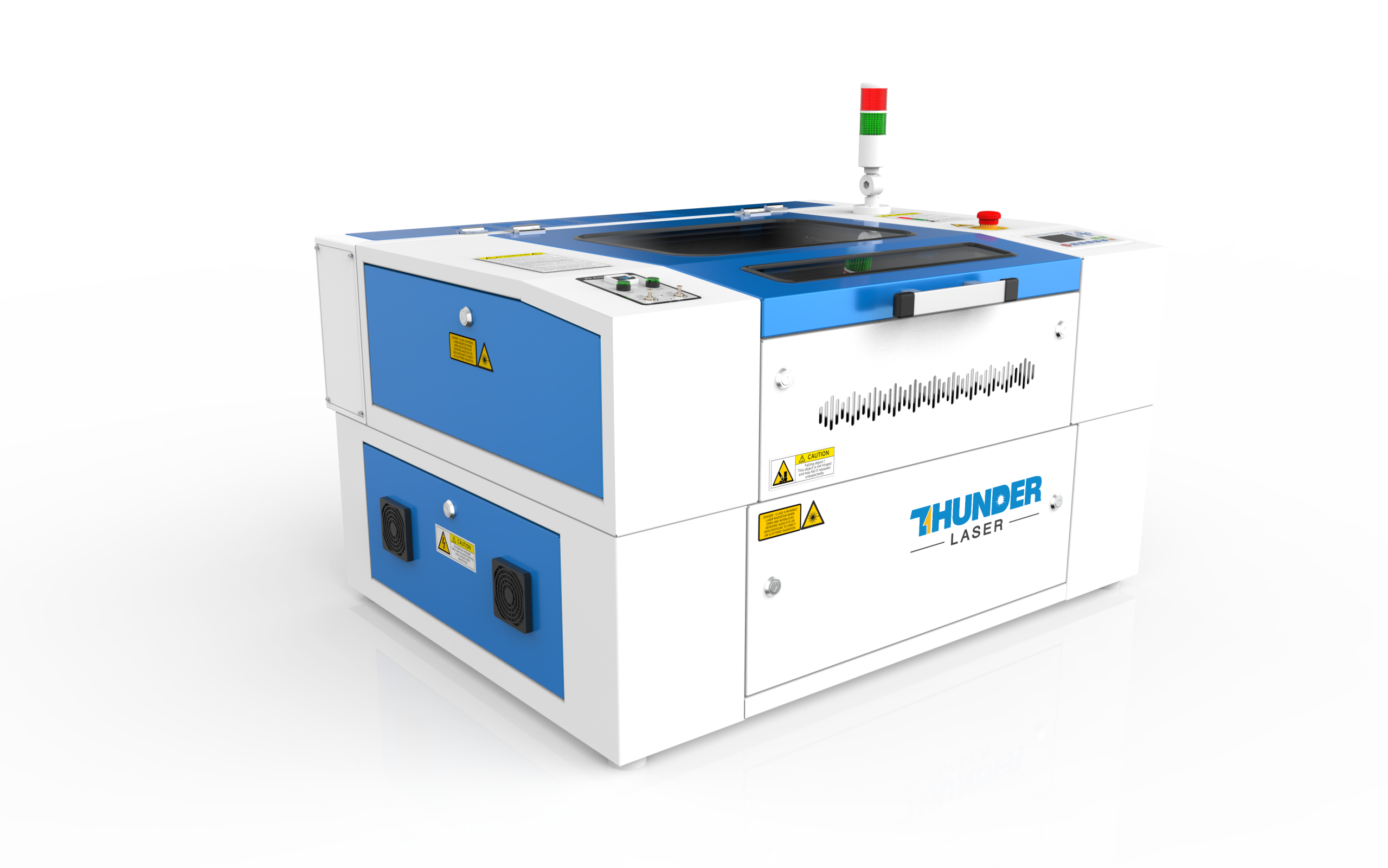

Thunder Laser Nova Plus 24

[High-precision & Speed Desktop Laser Engraver]

From $1,1900

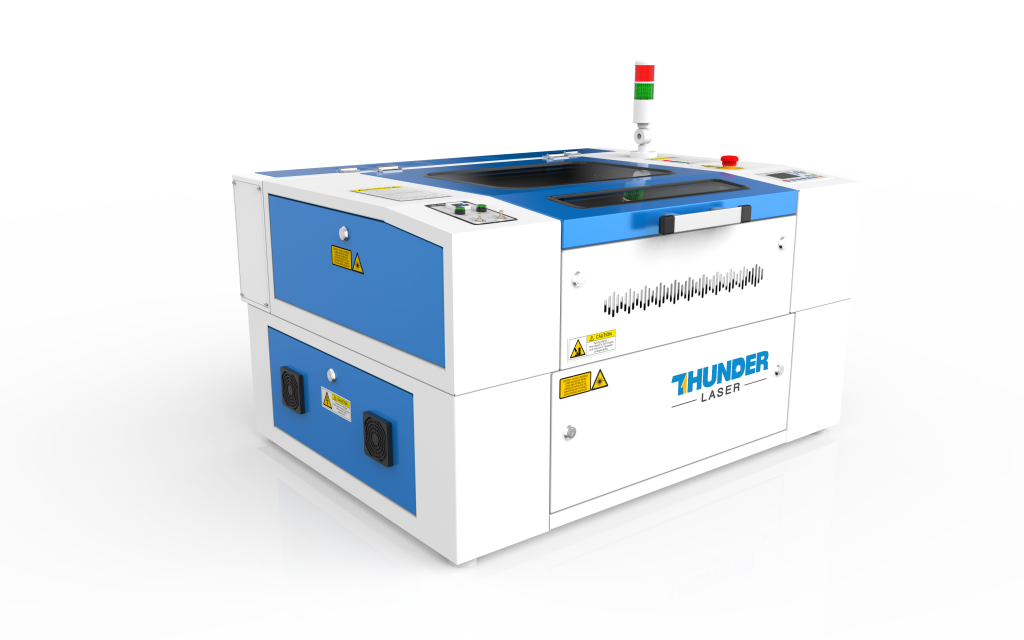

Nova Plus 24

Introducing the Nova Plus 24, a premium desktop laser engraver equipped with a high-performance RF metal tube for unmatched precision, speed, and stability. Engineered for professionals and creators who demand excellence, the Nova Plus 24 delivers superior engraving results, cleaner edges, and faster workflows across a wide range of materials.

Nova Plus 24

Introducing the Nova Plus 24, a premium desktop laser engraver equipped with a high-performance RF metal tube for unmatched precision, speed, and stability. Engineered for professionals and creators who demand excellence, the Nova Plus 24 delivers superior engraving results, cleaner edges, and faster workflows across a wide range of materials.

Standard Features

Our Standard Features

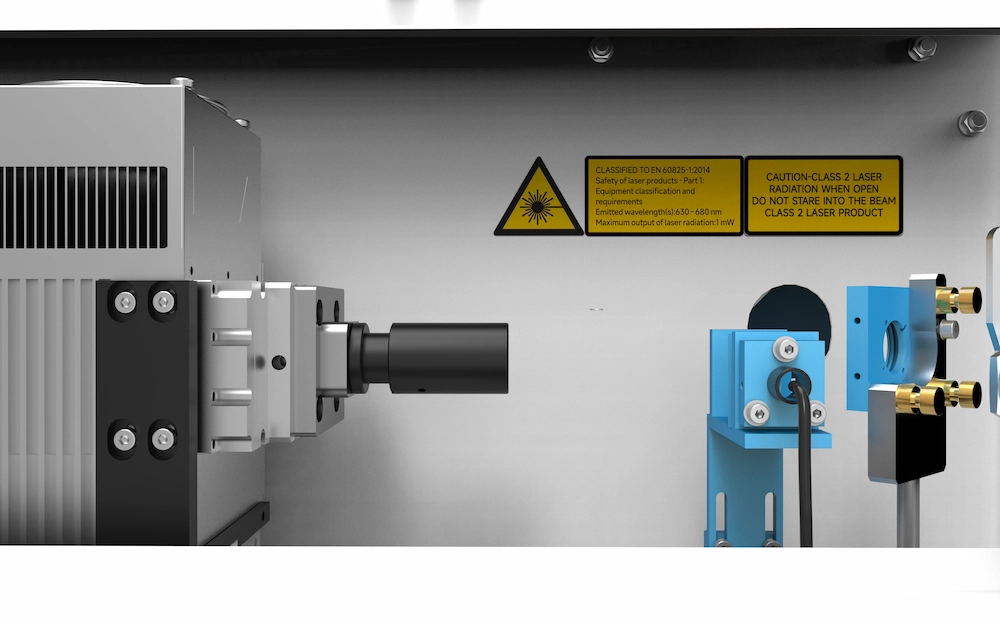

Metal RF Laser Tube

An impressive 2000 DPI resolu-tion and an extended lifespan of up to 10,000 hours, the Metal RF Laser Tube delivers exceptionally high and stable laser beam quality. Offering superior performance and cost efficiency com-pared to traditional glass tubes.

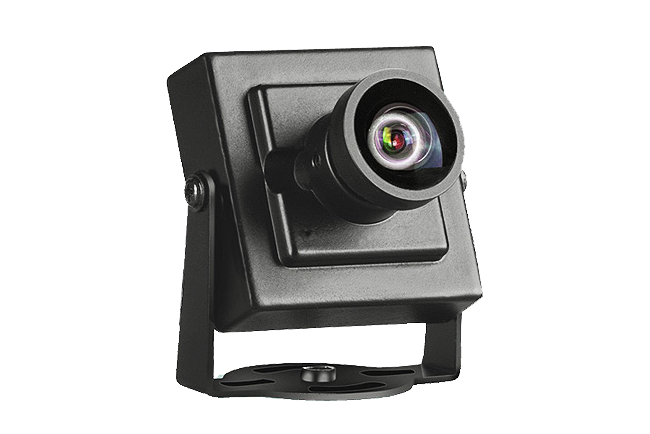

High-Resolution Camera

Equipped with a standard 5M camera, Nova Plus ensures a crystal-clear and precise view of your workspace. It sig-nificantly improves material alignment and design accuracy, making it ideal for handling intricate engraving or cut-ting projects with ease.

Metal RF Laser Tube

An impressive 2000 DPI resolu-tion and an extended lifespan of up to 10,000 hours, the Metal RF Laser Tube delivers exceptionally high and stable laser beam quality. Offering superior performance and cost efficiency com-pared to traditional glass tubes.

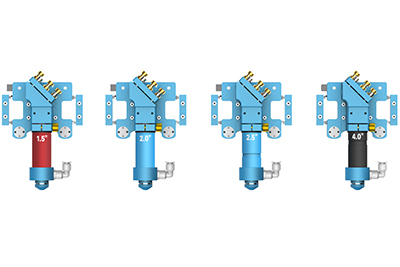

Laser Head Versatility

A high-quality laser head ensures su-perior laser beam output. Including the standard 2.5-inch lens, we offer four interchangeable lens sizes: 1.5 inches,2 inches, 2.5 inches, and 4 inches. You can select the lens that best meets the requirements of your laser project.

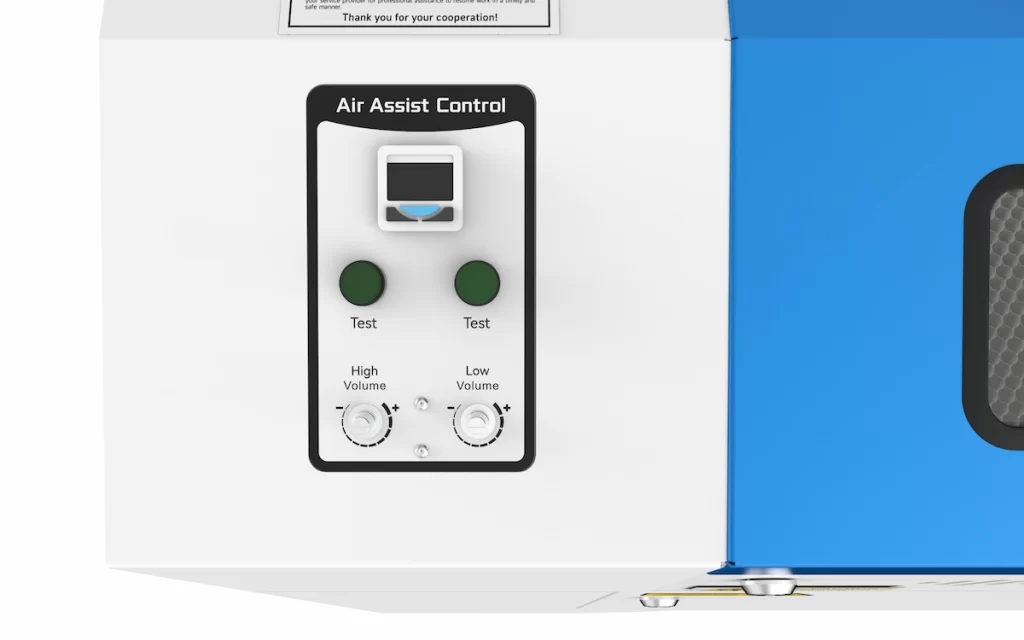

Air Assist and Air Pressure Monitoring

The Air Volume Sensor provides re-al-time air pressure monitoring, allow-ing you to adjust the air assist accord- ingly. Together, these features main-tain stable air pressure to prevent ma-terial combustion caused by low pressure, safeguarding both the ma- chine and the operator.

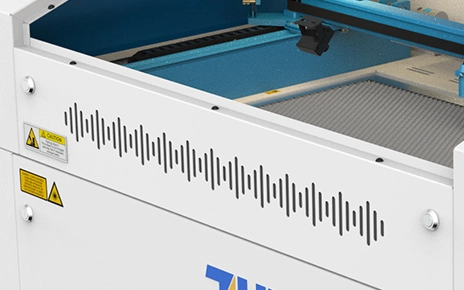

Enhanced Air Intake

With an air vent area of up to 15,080 cm², the enhanced air intake facili-tates better airflow, effectively reduc-ing smoke and dust during laser pro-cessing. This helps create a cleaner work environment and ensures more stable processing results.
Technical Specifications
Specification Nova Plus 24
Engraving / Working Area 600*400*155mm (23.6″ x 15.7″ x 6.1″)
Max Part Size Pass through closed: 615*470*155mm (24.2″ x 18.5″ x 6.1″) Pass through open: 610*∞*20mm (24.0″ x ∞ x 0.8″)
Machine Size 1120*865*682mm (44.1″ x 34.1″ x 26.9″)
Laser Wattage 60W RF Metal Tube
Internal Memory Store multiple files up to 1 GB. Engrave any file size.
Laser Source CO2 RF Matel Tube, Unmatched laser precision. Average lifespan: 10000 working hours
Electrical Requirements Standard 110v or 220v AC 60Hz Single Phase, dedicated 15A circuit
Air Assist Dual air assist and air volume meter.
Software LightBurn software optional; supports Windows, Mac, and Linux
Red Dot Pointer Shows where laser will fire; easy positioning
Camera System Comes with over-head camera as standard
Operating Modes Optimized raster, vector, or combined modes
Easy Adjustable Home New home position can be set by hand for items not easily placed in the top corner
Motion Control System Engraving speeds up to 1,200mm/s
Resolution Up to 1000dpi with included 2.5″ head or 2000dpi with 1.5″ head
Safety Open cover protection, air assist protection, heat alarm system
Auto Focus Cone-head touch auto focus system
Cooling Air Cooling
Motorized Table Includes removable honeycomb and solid metal blade (knife-style) bed
Laser Heads 2.5″ Head / Lens included; Optional 1.5″, 2.0″, and 4.0″ heads available.
TL-Timer (Smart Board) Relay switch controls for red and green alarm lights, air assist system, exhaust system, and automatic power supply for rotary attachment.
Warning Light Red light means working, and green light means safe.
Warranty The whole machine is under warranty for two years, and the RF tube is for one year.
Materials

If your material is not in the below list, our Applications Team would be happy to assist you to test it.

MaterialsEngrave Cut
Wood
Acrylic
Delrin
Cloth
Leather
Mat Board
Melamine
Paper
Mylar
Pressboard
Rubber
Wood Veneer
Fiberglass
Plastic
Cork
Corian
Twill
Anodized AluminumX
Painted MetalsX
TileX
GlassX
Coated MetalsX
CeramicsX
MarbleX
Stainless Steel*X
Brass*X
Titanium*X
Bare Metal*X

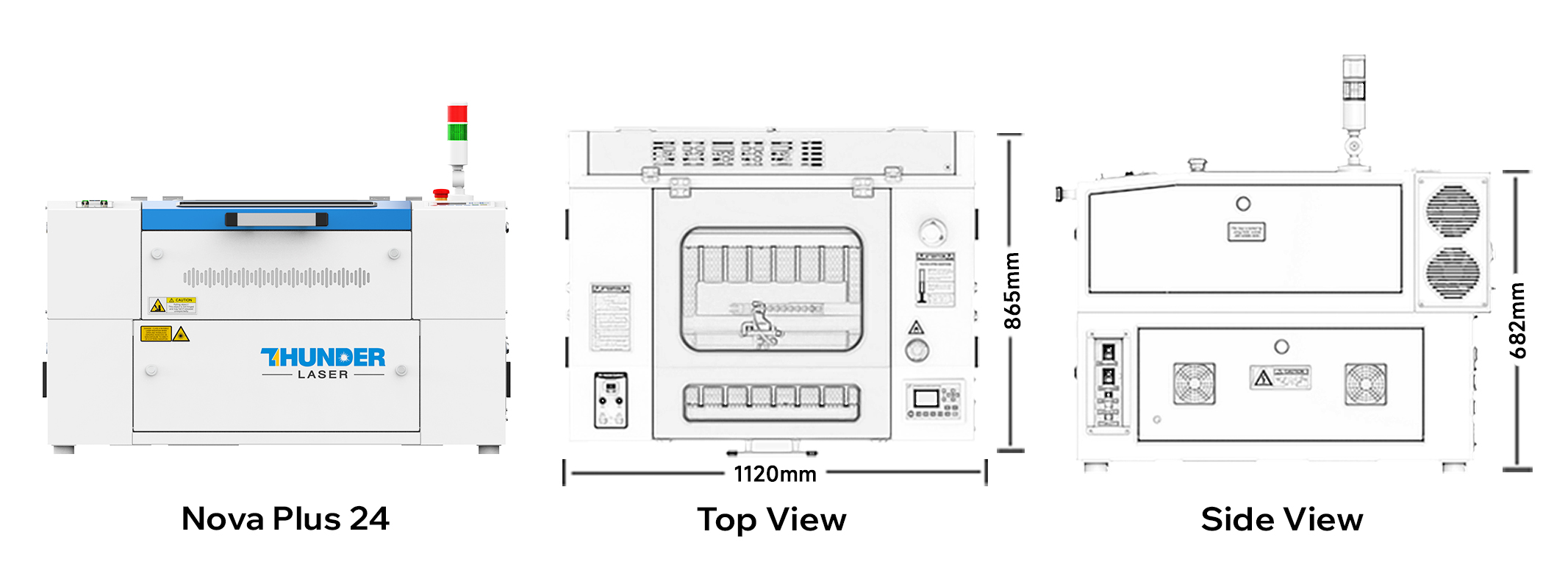

Machine Size

Optional Items

Optional Items

4” laser head

The 4” laser head is recommended for cutting material thicker than 10mm.

Rotary

A rotary tool allows for engraving cylindrical objects such as glass, wood or metal products like tumblers, cups, mugs, wine bottles or pens

co2 laser HR-head

HR head

Engrave high precision designs, photos, and 3D engraving.

Lightburn DSP License Key

Thunderlaser exclusive lightburn DSP license key

Why Choose Nova Plus Series Laser Engraving Machines

RF laser tube, far more efficient than glass when engraving Up to 4x faster and cleaner engraves than hobbyist machines True enterprise-grade quality for a fraction of the cost

Application

Our Desktop Laser Engraver machines empower you to push the boundaries of endless possibilities.

Frequently Asked Questions

What are the differences between the Nova Plus and the Nova? How should I choose?

The key difference between the Nova Plus and the Nova  is the upgrade from a CO₂ glass tube to a CO₂ RF tube, delivering higher engraving precision and enhanced cutting power. This also increases speed from 1000 mm/s to 1200 mm/s. Thanks to the RF tube’s advanced capabilities, air cooling is sufficient, eliminating the need for an additional water chiller.

Nova Plus Series Nova Series
Laser Tube RF Metal Tube
(2000DPI 10,000 hour lifespan)
Glass Tube
(500DPI 2000-4000 hour lifespan)
Acceleration 2.5G
1G
Speed 1200mm/s 1000mm/s
Auto focus Easier focusing, suitable for transparent acrylic, with auto-focusing capability anywhere. Not suitable for transparent acrylic,
with a fixed focusing area.
Camera Standard Optional
Cooling Alr Coollng Water Cooling

Can I upgrade my Nova to the Nova Plus?

No, upgrading from the Nova to the Nova Plus requires structural changes to the machine and must be done at the factory.

How do I choose the right laser machine for my needs?

Choosing the right laser can be daunting, but we are here to help! The best way to figure this out is to call us or set up a time to speak to one of our laser experts. They will ask you questions about what you’d like to create and help you find a machine to suit your needs and budget.

The main things to consider are:

How much space do I have?
What materials do I want to cut or engrave?
How thick of material do I want to be able to cut?
What is my budget?
Am I going to be doing production runs or one-off projects?

We’ve written a more in-depth article on this here.

What is the maximum power available for the Nova Plus Series?
The Nova Plus Series currently offers a maximum power of 80W with RF tube. However, higher-power models — 100W and 120W — are coming soon to meet the needs of users who require even greater cutting performance.
Is the Nova Plus suitable for small businesses or mass production?

Both. Its precision makes it great for custom products, while the durability and speed make it suitable for batch production.

What is the warranty for the Nova Plus and its RF tube?

The machine comes with a 2-year warranty. The RF tube usually carries a 1-year warranty depending on the supplier.

What kind of support is available after purchase?

We provide free training, responsive technical support within 24 hours, and a global agent network to assist you locally.
