Thunder Laser Bolt

[High-precision&speed Small Laser Engraver Australia]

From $8000

thunder-laser-bolt-1
thunder-laser-bolt-plus-1
thunder-laser-bolt-pro-22-1
thunder-laser-bolt-pro-32-1

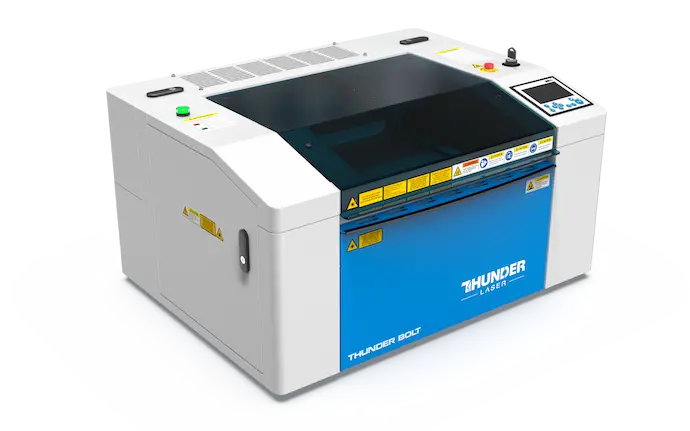

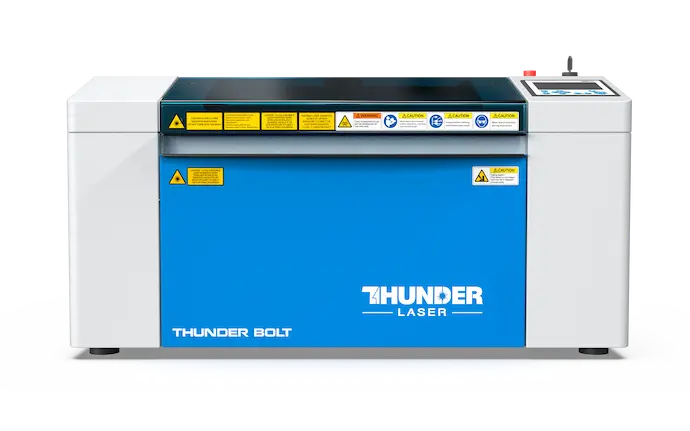

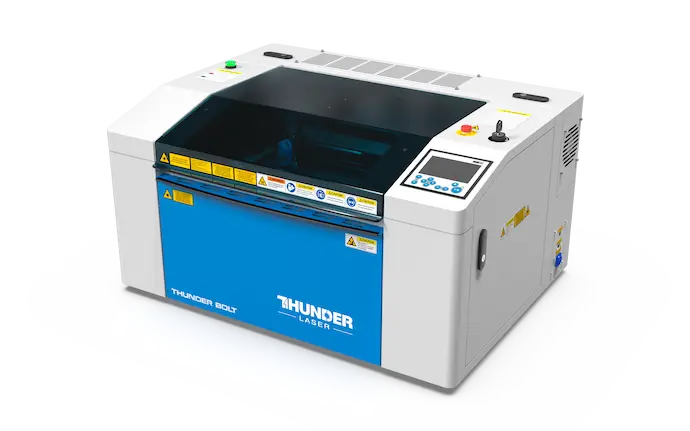

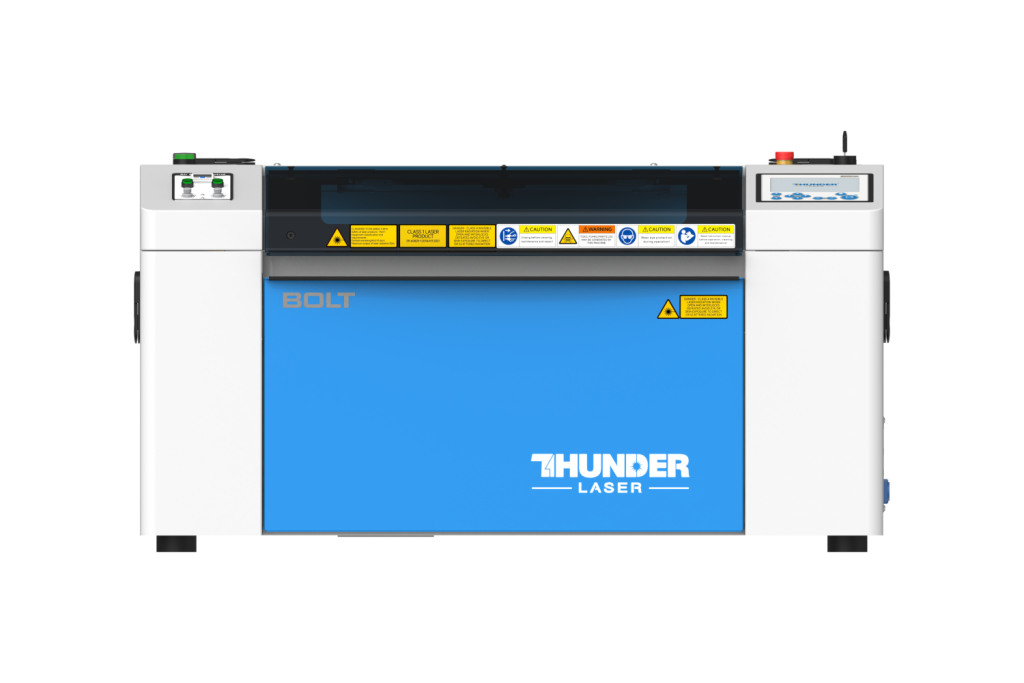

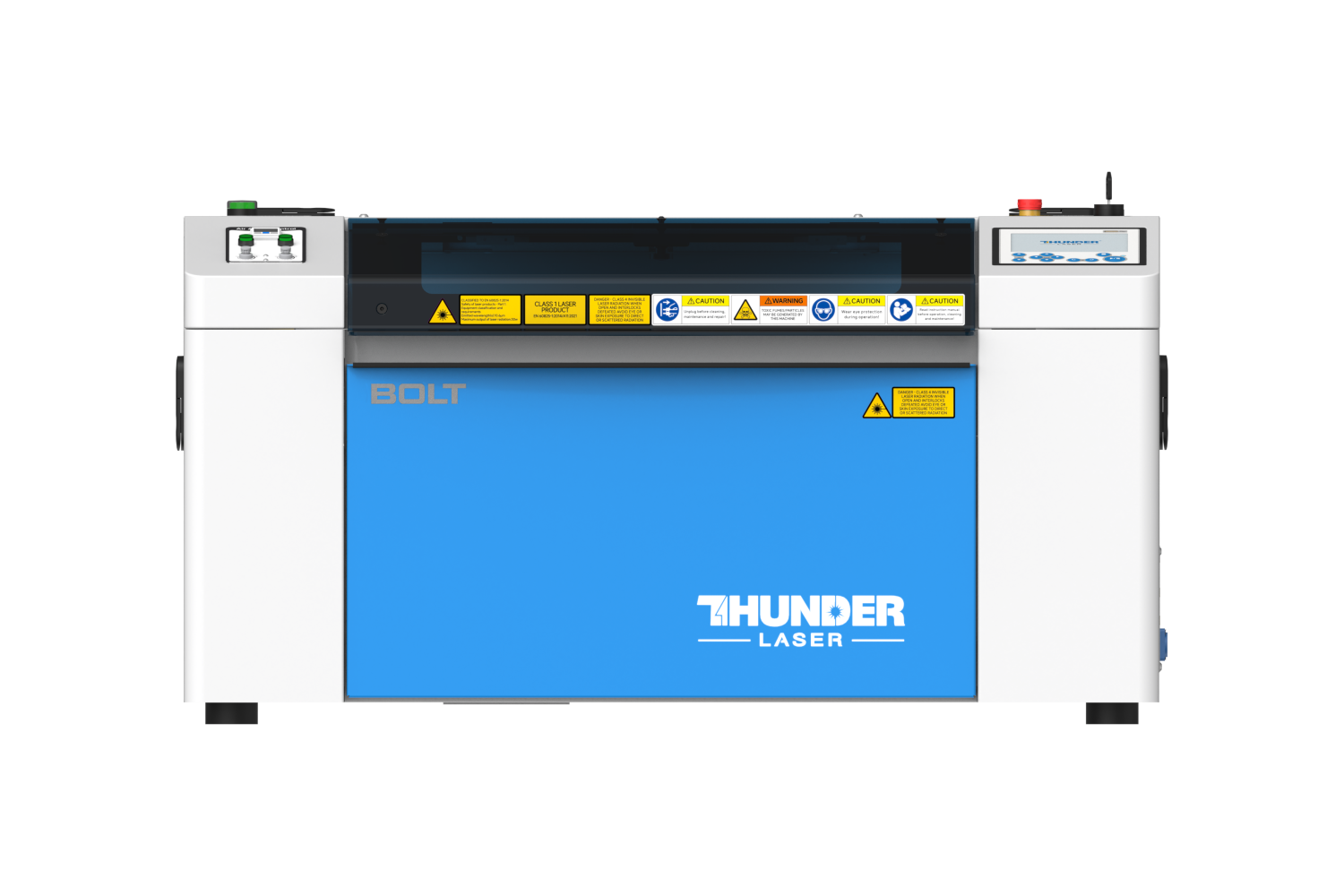

Thunder Bolt

Introducing the Thunder Bolt laser engraver and cutter series, our most affordable and compact laser engraver Australia. This lightweight CO2 desktop laser provides military-grade durability with lightning-fast engraving capabilities. Equipped with a robust RF Laser tube, the Thunder Bolt guarantees an extended lifespan, enhanced beam quality, and an accelerated laser response rate. Thunder Bolt Pro can even meet your advanced laser business needs, featuring a larger working area and processing speeds of up to 2000mm/s. It provides you with a compact, high-quality engraving and cutting solution. The groundbreaking design and user-friendly interface will supercharge your business operations with the best laser engraver Australia has to offer.

Contact us
thunder-laser-bolt-1
thunder-laser-bolt-plus-1
thunder-laser-bolt-pro-22-1
thunder-laser-bolt-pro-32-1

Thunder Bolt

Introducing the Thunder Bolt laser engraver and cutter series, our most affordable and compact laser engraver Australia. This lightweight CO2 desktop laser provides military-grade durability with lightning-fast engraving capabilities. Equipped with a robust RF Laser tube, the Thunder Bolt guarantees an extended lifespan, enhanced beam quality, and an accelerated laser response rate. Thunder Bolt Pro can even meet your advanced laser business needs, featuring a larger working area and processing speeds of up to 2000mm/s. It provides you with a compact, high-quality engraving and cutting solution. The groundbreaking design and user-friendly interface will supercharge your business operations with the best laser engraver Australia has to offer.

Bolt Brochure.pdf
Contact us
Standard Features

Our Standard Features

High Speed Motor
High speed motors

Japanese ORIENTAL motor systems on X and Y axes, with 80 IPS(2000mm/s) and 3G acceleration engraving speed.

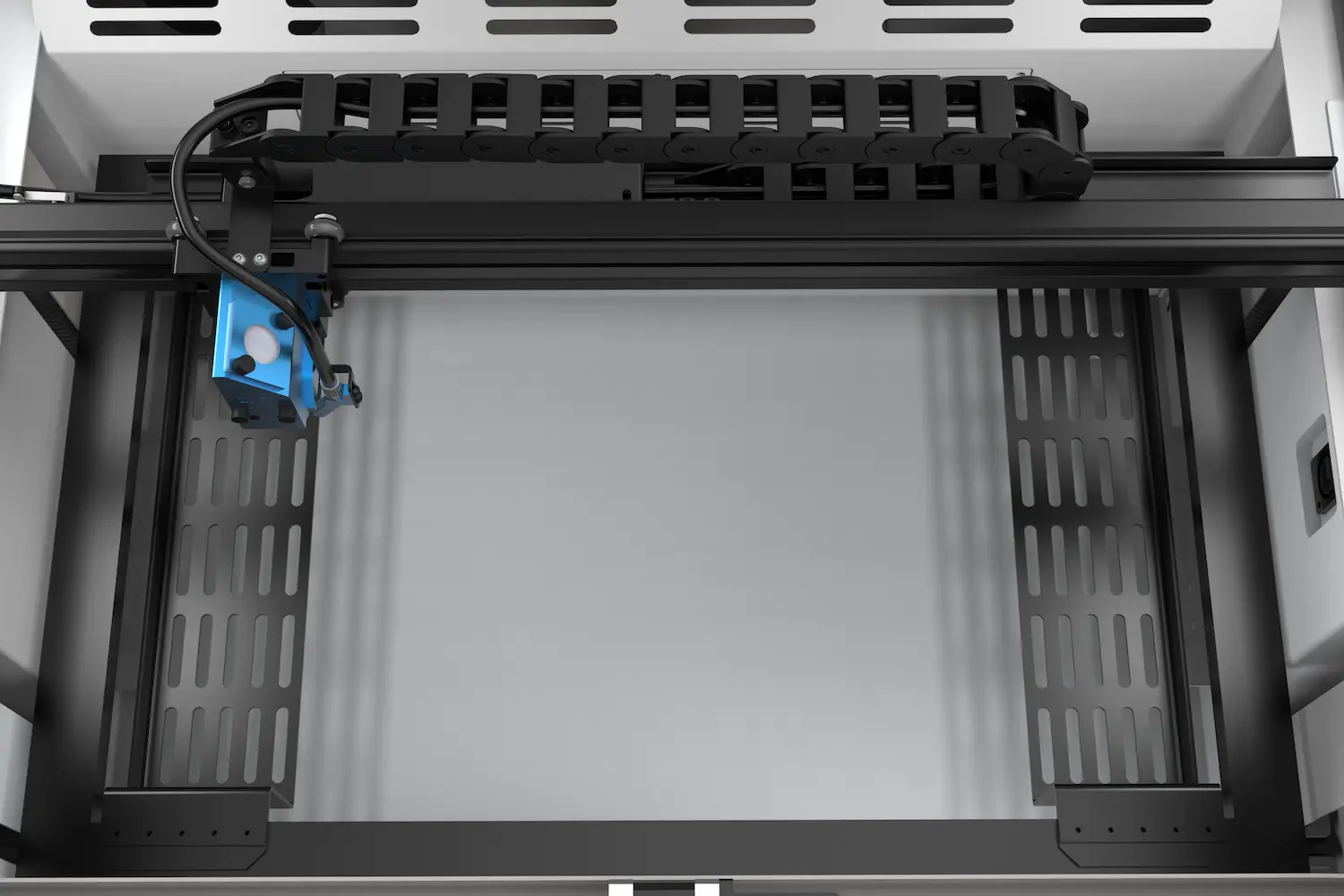

New: 100% smoother guide Rail

Patent guide rail developed by Thunder Laser,less resistance and low noise.

New: 1,000 DPI RF metal laser source
New: 1,000 DPI RF metal laser source

With excellent quality Beam output and stable laser power, lifespan up to 10,000 hours.

New: Upper & Lower Vent
New: Upper & Lower Vent
To timely remove the heat from material surface.
Dual Air Assist system
Dual Air-Assist system

Adjusting air volume for cutting and engraving separately for different requirements

NewEightfold-Open-flap-protection

Laser will stop if someone open any machine cover during working.

Rotary Capabilities

A Rotary allowing you to rotate cylindrical or oddly-shaped items for more applications.

Auto Focus

One click and autofocus is done. The red light indicator allows for more precise focusing on curved surfaces.

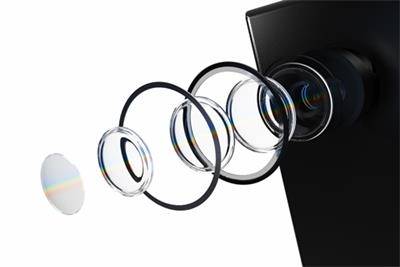

5MP Camera Positioning

An overhead Fish-Eye Camera with positioning accuracy less than 1mm distortion.Drag and drop your design on screen then  start laser processing.

RF Laser & Beam Expanders

Metal tube design provides a higher beam quality and longer life.A Beam expander is helpful for a finer laser output quality.

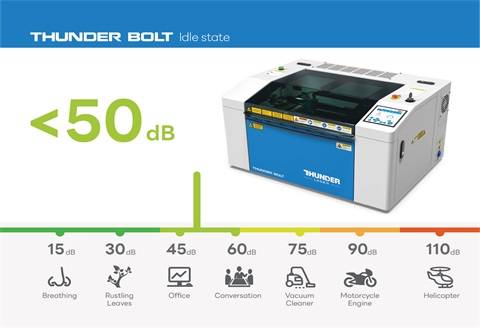

Low Noise & Lower Vibration

Low Noise & Lower Vibration The noise is less than 50 decibels in idle state.

Integrated Design & 1GB Memory

Support 100 designs to be saved in the laser and improve job management. Save your time.

Technical Specifications
Laser System Thunder bolt Thunder bolt Plus Thunder bolt Pro 22 Thunder bolt Pro 32
Wattage 30w RF Tube
(comparable to a 60w glass tube) 		40w output – 30w Coherent RF Tube
(comparable to a 70w glass tube) 		40w output – 30w Coherent RF Tube
(comparable to a 70w glass tube) 		55w Coherent RF Tube
(comparable to a 100w glass tube)
Working Area 20″ x 12″ 20″ x 12″ 22″ x 15″ 32″ x 20″
Max Material Height 4.3″ 4.3″ 7.2″ 7.2″
Machine Footprint 36″ x 27″ x 18″ 36″ x 27″ x 18″ 41.3″ x 33.5″ x 40.2″ 51.3″ x 38.6″ x 40.2″
Cutting Thickness 1/4″ wood and 3/8″ acrylic 3/8″ wood and 1/2″ acrylic 3/8″ wood and 1/2″ acrylic 1/2″ wood and 3/4″ acrylic
Engraving Speed 1,000mm/s 1,500mm/s 2,000mm/s 2,000mm/s
Acceleration 3G 5G 5G 5G
Dual Air Assist No Yes Yes Yes
Intelligent Memory Capacity Multiple File Storage up to 1GB
Visual Rendering High Resolution Camera
Rotary Compatible Yes
Cutting Wood, acrylic, leather, fabric, MDF, rubber, and many more!
Engraving Wood, acrylic, leather, glass, tumblers, MDF, rubber, plastics, annodized aluminum, and many more!
Standard Lens 1.5″
AutoFocus Yes
Engraving Resolution 2,000 DPI with 1.5″ Lens
Support Free US based lifetime support with the fastest response times in the industry
Software RDWorks included, LightBurn can be purchased additionally
Materials
If your material is not in the below list, our Applications Team would be happy to assist you to test it.
Materials Engrave Cut
Wood √ √
Acrylic √ √
Delrin √ √
Cloth √ √
Leather √ √
Mat Board √ √
Melamine √ √
Paper √ √
Mylar √ √
Pressboard √ √
Rubber √ √
Wood Veneer √ √
Fiberglass √ √
Plastic √ √
Cork √ √
Corian √ √
Twill √ √
Anodized Aluminum √ X
Painted Metals √ X
Tile √ X
Glass √ X
Coated Metals √ X
Ceramics √ X
Marble √ X
Stainless Steel * X
Brass * X
Titanium * X
Bare Metal * X

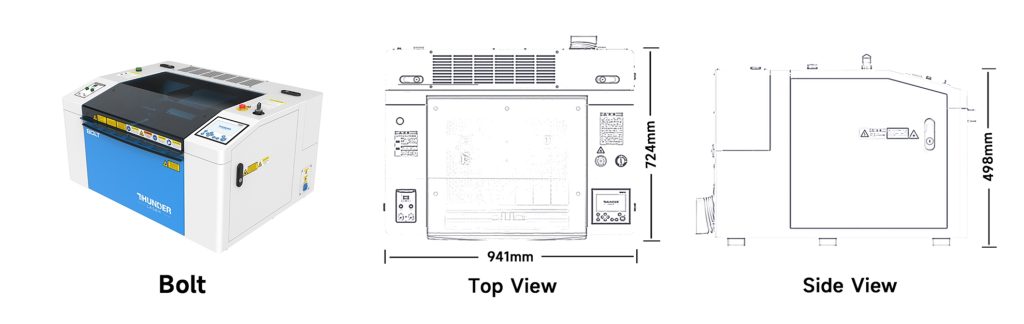

Machine Size
Optional Items

Optional Items

Rotary for Bolt and Plus

Provides precise processing on cylindrical objects for Bolt and Plus, enhancing your laser processing capabilities.

Rotary for Bolt Pro

It enables precise processing on cylindrical objects for Bolt Pro, ensuring accurate processing of bottles, glasses, and more..

Focus lenses

Focus Lenses

Lenses available for all project types. The more detailed the graphics, the shorter the focal length. The thicker the material, the greater the focal length is required.

Lightburn DSP License Key

Install a removable rotary in your laser engraving machine for cylindrical glass, wood, or metal products.

Thunder Laser Bolt Series

High Speed
High Efficiency

  • 3G Acceleration
  • 1000mm/s Max Engraving Speed
  • RF Metal Laser Tube

Thunder Laser Bolt Pro Series

The Odin series laser engraver and cutting machine combines a compact size, with high-quality engraving and cutting at a low cost. This Laser machine is intended for very high-detail engraved and minimal cutting.

  • 2,000mm/sec Engraving speed
  • Speed & Accuracy RF Laser Tube
  • Australia based customer service

Application

Our engraving and cutting machines empower you to push the boundaries of endless possibilities.

engraving-tumblr
Laserengraving
leatherengraving
wood-logo-engraving
pencil laser engraving

What Our Customers Say About?

Lisa Turnbull

5/5

Nothing short of amazing! After purchasing a “hobby” laser elsewhere 12months ago and never successfully being able to make anything, I decided to give the laser engraver Australia a try. And the results tonight are absolutely incredible!

Rob Nance

Rob Nance

5/5

I spoke with Glenn at Thunder Laser about what I wanted to do with the laser engraver Australia, and he was a big help. So I settled on the Bolt, and I couldn’t be any happier. Thanks to Glenn and the rest of the Thunder laser crew!

Jason Dow

5/5

Great parts, great assembly, great people. Thunder Laser is absolutely the best value for a laser engraver Australia!

Belinda Fancett

5/5
Mandy was extremely helpful in answering all of my questions promptly as I was researching what laser engraver Australia to purchase as my very first laser machine.
Kelsie Donant ico

Kelsie Donant

5/5
I was very undecided about my laser purchase. Glenn was so helpful in helping me make that decision. And very patient with my 101 questions. I never felt pressured, just felt supported.

Tommy Norris

5/5
Glenn conducted our class on photo engraving with the utmost professionalism and attention to detail. His exceptional experience, knowledge, and teaching ability, allowed us to learn the steps involved in adjusting images and settings to engrave photos.

Frequently Asked Questions

Thunder Bolt
1.Will Thunder Bolt be difficult to set up or learn how to use?

Using the Thunderbolt is remarkably straightforward. In fact, it takes under ten minutes to unbox and set up for immediate use. You can find the unboxing video by clicking here: https://www.youtube.com/watch?v=_rlE2yhUKfo



Its user-friendly interface control panels and the service of delivering the entire machine come together to ensure a hassle-free experience.



Your Thunderbolt arrives with a comprehensive manual that guides you through its usage, enabling swift and effortless learning.



We’ve witnessed astonishing creativity from a diverse range of individuals, spanning from preschool students to great-grandparents. We are confident that you too will be able to craft incredible creations!

2.What materials can Thunder Bolt cut and engrave?

The Thunder Bolt has the capability to slice through materials like wood, fabric, leather, paper, Plexiglas (acrylic), Delrin (acetal), mylar, rubber, Corian, various food items, and a host of others. Additionally, the Thunder Bolt offers engraving functionality for all the aforementioned materials, as well as glass, coated metal, marble, anodized aluminum, titanium, select phones, tablets, laptops, and more. And you have the ability to craft an infinite array of valuable, exquisite, and functional objects.

3.Can Thunder Bolt be used to engrave cups?

Certainly, that’s possible! We offer the option to purchase an additional rotary attachment that work with your Bolt. By utilizing the Z-axis control lift system integrated into the Bolt, you can easily position the rotary attachment. This allows you to engrave designs onto cups or other cylindrical objects. It’s important to note that our system can accommodate objects with a maximum outer diameter of 30 ounces.

4.What's the size of the Thunder Bolt bed?

The Thunder Bolt bed can accommodate materials measuring 20 in x 12 in (50.8 cm x 30.5 cm).

5.How fast can Thunder Bolt complete a project?

Our Thunder Bolt boasts a top engraving speed of 1000mm/s and accelerates at a remarkable 3G. This translates to a much faster performance compared to other similar products. I’m confident that watching this video will provide you with a more intuitive understanding:

Thunder Bolt Pro
1.Do I have to record all the cutting/engraving parameters for different materials in a paper?

No need. We’ve added a parameter library in the software, once you find out what settings is best for a certain material;you can record it in the parameter library. Next time you cut the same material, you just need to read it from the list.

2.What kind of software and hardware do I need to use Thunder Laser?

You can use your Thunder Laser machine from your Mac, PC, and more to connect with it. You’ll just need a USB-PC Cable or Ethernet Cable.



Utilizing software like LightBurn, RDworks, and Adobe Illustrator, you have the capacity to create designs. Thunder Bolt has the capability to print various file formats including JPG, PNG, SVG, PDF， and more. The process of printing a file is as simple as transmitting it to our Laser Machine, followed by fine-tuning the preview according to your preferences.

3.What files is the software compatible with?
JPG, PNG, BMP, PLT, DST, SVG,DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA,PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW

4.Can I take a picture and engrave the image on an object without any hassles?
Yes, you can take a photo by using a camera and then load the photo to the software directly and engrave it.

5.Does machine comes ready to work?
the laser machine is ready to work, the exhaust fan and the air pump and the water pump are included. (But when you using a big power laser tube, it is suggested to buy a water chiller for cooling the laser tube) https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-mini60-laser-system.html https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-nova-laser-cutter.html

6.How much time do I need to spend on learning how to run the laser machine?
As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too. https://www.thunderlaser.com.au/video/what-laser-cutter-can-create.html https://www.thunderlaser.com.au/video/how-to-use-your-laser-machine.html https://www.thunderlaser.com.au/video/how-to-use-your-laser-software.html

7.How to send a job to the machine?
Please watch this video directly to learn the detail https://www.thunderlaser.com.au/video/how-to-use-your-laser-software.html

8.Do I need separate laser systems for engraving and cutting?
No, our laser machine can do both cutting and engraving very well.You just need one machine for both kinds of jobs.
9.What is the warranty on Thunder Laser machines?
Our Laser machines come with a 2-year warranty for parts and a 1-year warranty for consumables. This warranty is backed by the Thuner Laser Australia.
