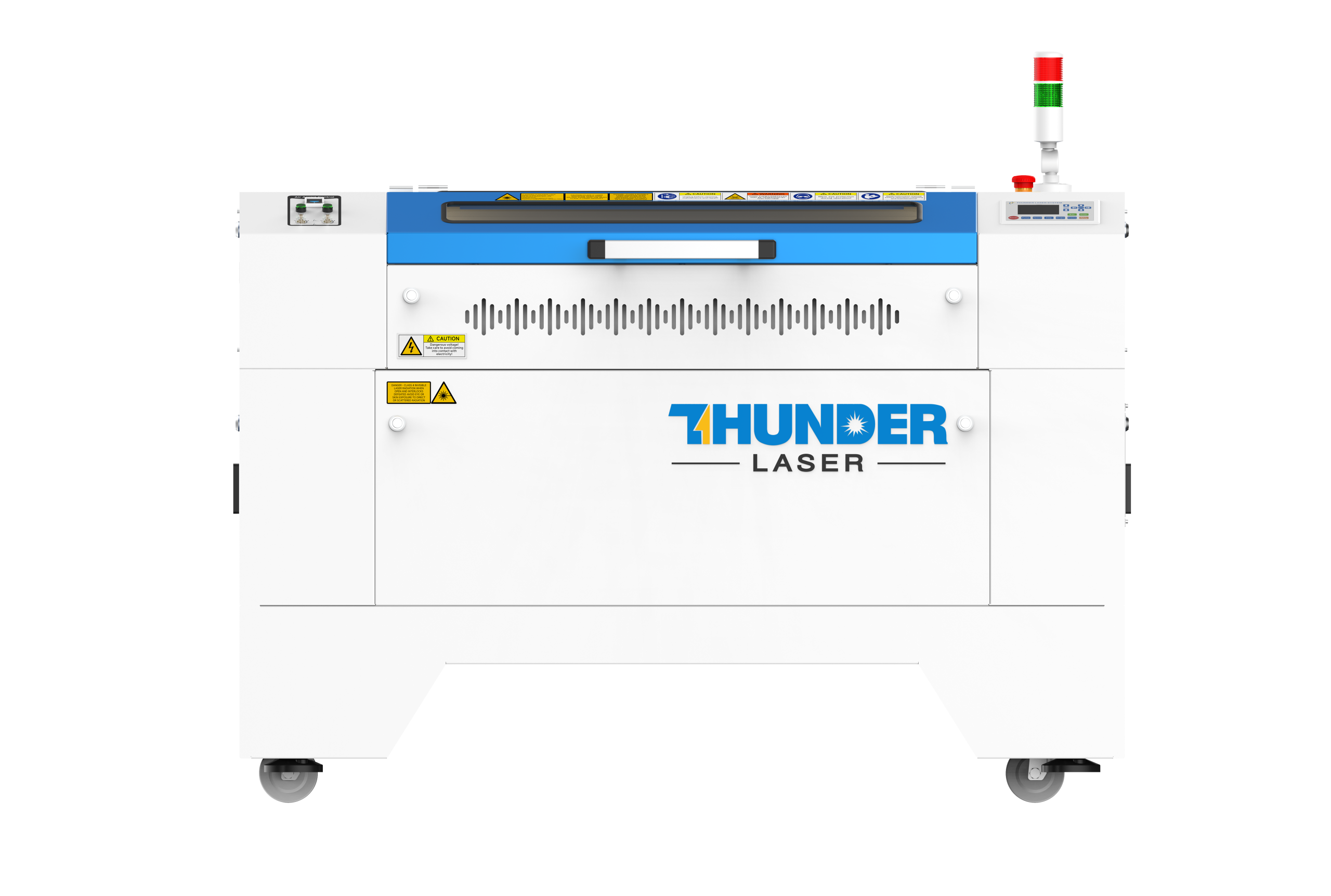

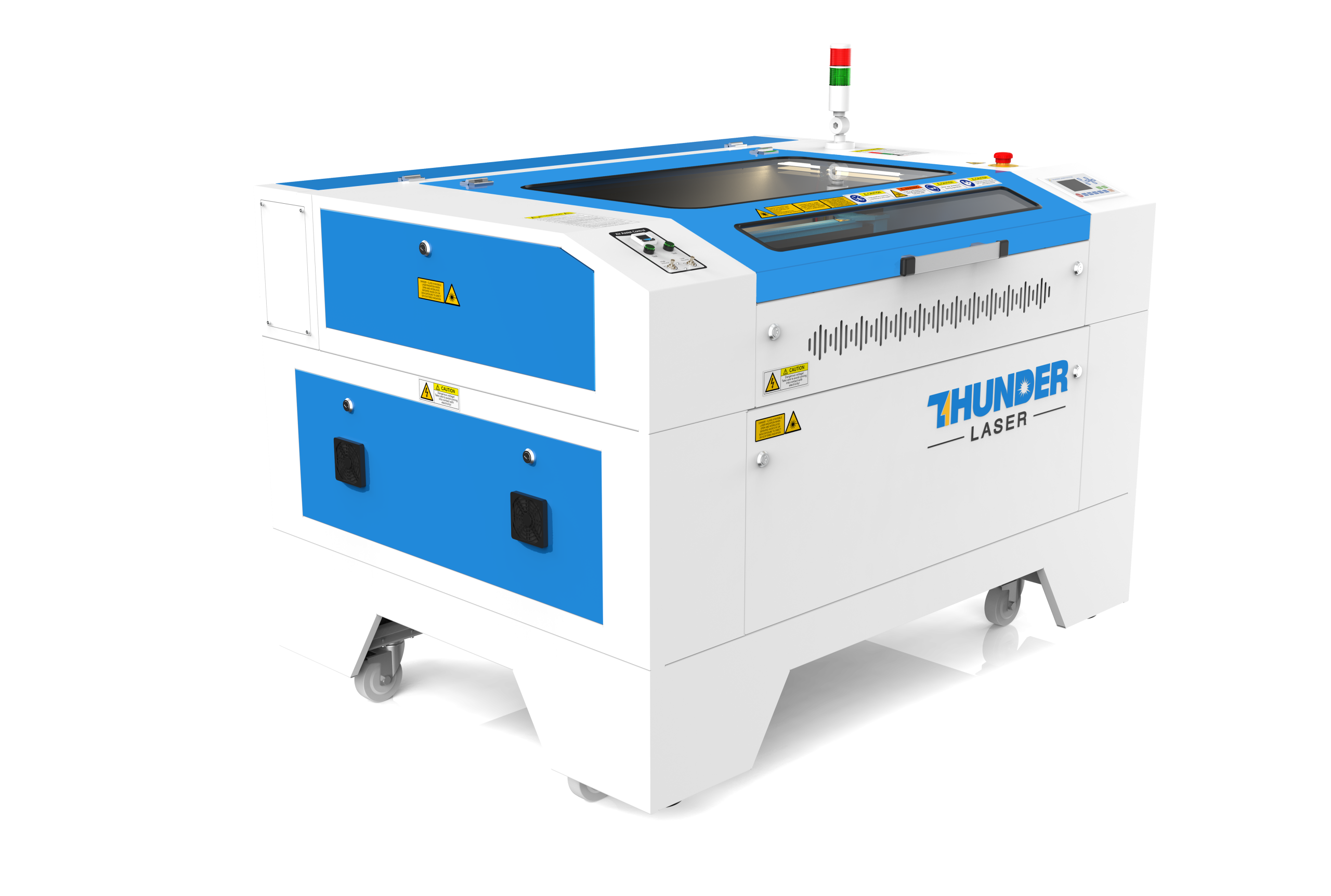

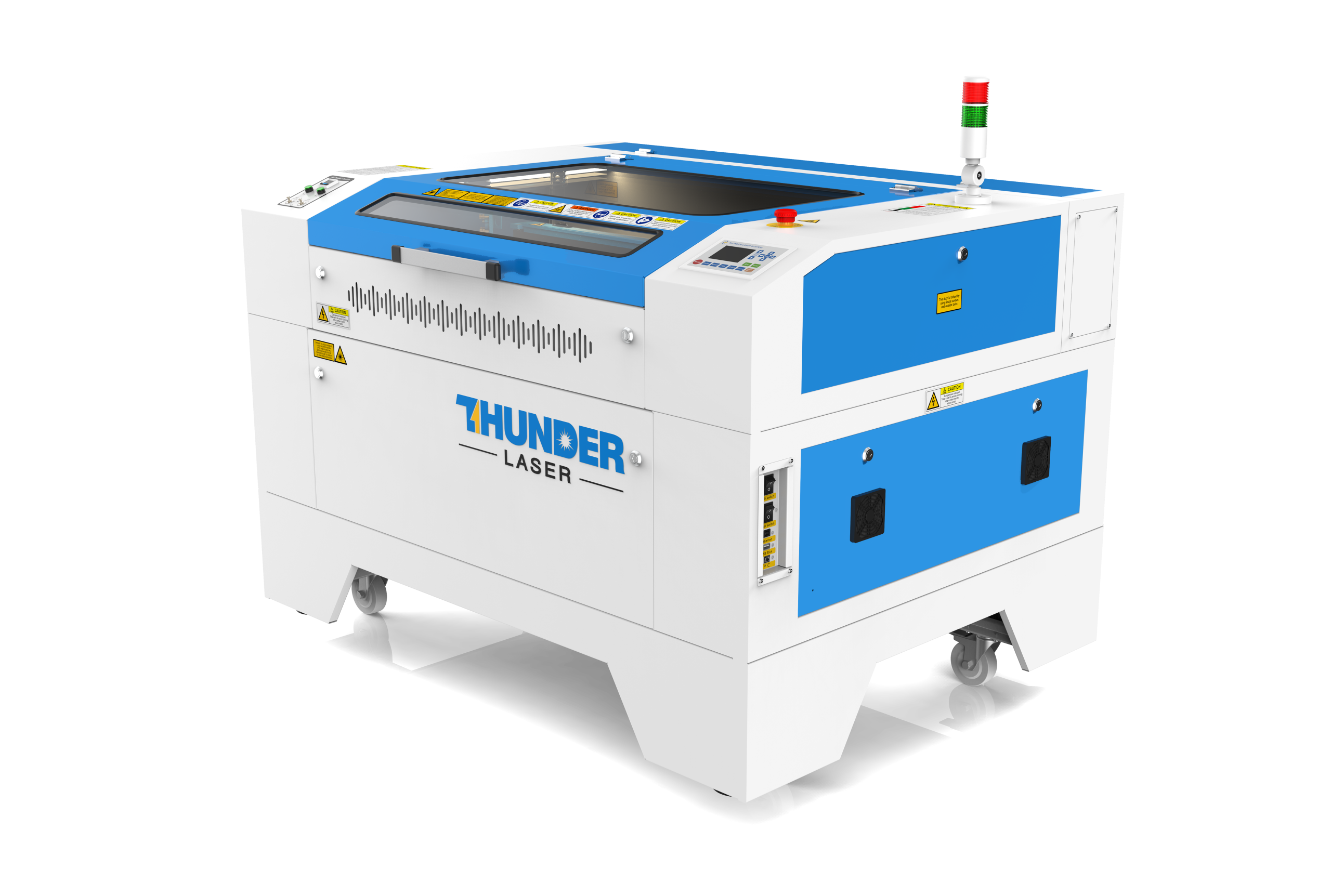

  • nova-35 laser engraver
  • nova 35 laser engraver
  • nova 35 laser engraver
  • nova 35 laser engraver
  • nova 35 laser engraver
  • nova 35 laser engraver
  • nova 35 laser engraver
  • nova 35 laser engraver

    Standard Features

    laser engraver Hybrid servo motor

    Hybrid servo motor
    1000mm/s speed for engraving photo, super smooth vector cutting quality.
    laser engraver Smart board

    Smart board
    Control the exhaust fan,air assist, and alarm lamp automaticly, energy saving
    Laser software

    Laser software
    RDWorksV8 laser software.
    laser engraver LCD panel

    LCD panel
    Set speed, power, and more directly from the LCD panel.
    laser engraver Auto focus

    Auto focus
    Help the user to set focus Easier. (based on motorized table)
    laser engraver Motorized table

    Motorized table
    Control the table up/down from LCD panel directly
    laser engraver Honey comb table

    Honey comb table
    Reduces underside reflections.
    laser engraver Aluminum blade cutting table

    Aluminum blade cutting table
    Reduce the influence of the reflection of laser.
    laser 3D Engrave

    3D Engrave
    Engrave high quality 3D photos directly.
    laser 3D cutting

    3D cutting
    Achieve “3D cutting” on some materials
    laser engraver Connection ways

    Connection ways
    High-speed Ethernet line or the USB cable line.
    laser engraver USB disk

    USB disk interface
    Thunder laser system supports the USB disk loading.
    laser engraver Visible Red Dot Pointer

    Visible Red Dot Pointer
    Make the laser beam “visible”.
    High quality laser tube

    High quality laser tube
    Every laser tube must pass the strict quality control test.
    laser engraver High quality optics

    High quality optics
    High quality optics.
    laser engraver Mirror mount

    Mirror mount
    Thunderlaser easily re-adjusting 3D mirror mounts.
    laser engraver Emergency stop

    Emergency stop
    Turn off the machine immediately when there is an accident.
    laser engraver flap protection

    Open flap protection
    Laser will stop working if you open the front cover.
    laser engraver Water protection

    Water protection
    Laser will stop working if the water cooling system is not working
    laser engraver Alarm Lamp

    Alarm Lamp
    Show the work state and tell when the job is done, more safe for you.
    Standard laser head

    Standard laser head
    It is the most often used head.
    laser engraver Air assist

    Air assist
    Blowing air to prevent the material being burned
    laser engraver Low-noise cooling fan

    Low-noise cooling fan
    Operate the laser in a quiet and comfortable surroundings.
    laser engraver High quality rails

    High quality rails
    Keep the engraving/cutting precise and very durable.
    laser engraver Exhaust system

    Exhaust system
    Ensure the work pieces and laser cutter machine inside be clean.
    laser engraver Water Chiller

    Water Chiller
    keep the temperature to ensure the stability of laser working.
    laser engraver Air assist

    Air assist
    Blowing air to prevent the material being burned.

    Technical Specifications

    Laser System NOVA 35
    Laser Tube Wattage 80-130Watt
    Work Area 900x600mm(35.4″ x 23.6″)
    Max Part Size (WxLxH) Front door closed

    1000x730x230mm(39.4″ x 28.7″ x9.0″)

    Pass-through door

    1000x∞x20mm(39.4″ x ∞” x0.8″)

    Table Size 1000x730mm(39.4″ x 28.7″)
    Z Axis Height 230mm(9.1″)
    Dimensions(WxDxH)

    1500x1105x1040mm(59.1″ x 43.5″ x40.9″)

    Net Weight 310kgs(683lbs)
    Laser Type Sealed Co2 Glass Laser Tube
    Cooling Water Cooled
    Motion Control System High-Speed Hybrid servo motor
    Maximum Speed 1000mm/S(39.4 IPS)
    Speed and Power Control (engraving depth) Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
    Operating Modes Optimized raster, vector, and combined mode
    Resolution(DPI) User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
    Computer Interface Ethernet and USB Connection
    Compatible Operating Systems Windows XP/2000/Vista/7/8/10
    Buffer Memory 128MB Standard
    Display Panel 3.5″ LCD panel showing current file, total working time, laser power, speed etc.
    Electrical Requirements 110 to 240 volts, 50 or 60 Hz, single phase
    Ventilation System Integral exhaust fan.There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.

    Machine Size

    nova35 size laser cutter nova35-100w size laser cutter

    Optional Items

    nova35
    Air-pressure control sensor
    The Air-pressure control sensor made by Thunder Laser can measure the air pressure and indicate the air-pressure value in real time.it can set to measure even 0.01Mpa air pressure, it’s valid for both air pump and high pressure air compressor…
    laser engraver
    Rotary Axis Rotary engraving equipment was used to extending THUNDERLASER system application, as a optional component, It can be used for cutting and engraving round items…
    laser engraver
    Heat Alarm Detector A thermal detector is designed for areas where a fire will be more flame and heat than smoke; areas such as laser cutter and engraver, kitchens, garages and workshops. The small thermal heat detector will also have a 10 year, long life battery…
    laser engraver
    HR laser head We named Hight-Resolution head as HR head for short,it’s made by special structure for focusing the laser bean into a much smaller dot,thus we can get more tiny laser dots in a unit area,and the engraving result will be more elaborate…
    laser engraver
    4″ laser head 4″ laser head owns a longer focal distance than 2″ standard head, thus for cutting thick material, it makes the cutting edge more smooth and straight…
    laser engraver
    Air compressor The high pressure and low noise air compressor offered by Thunder Laser co2 laser engraving machine includes two parts: the high pressure and low noise air compressor and the water separator…

    Materials

    If your material is not in the below list, our Applications Team would be happy to assist you to test it.
    Materials Engrave Cut
    Wood
    Acrylic
    Delrin

    Cloth

    Leather
    Mat Board
    Melamine

    Paper
    Mylar
    Pressboard
    Rubber
    Wood Veneer
    Fiberglass
    Plastic
    Cork
    Corian
    Twill
    Anodized Aluminum X
    Painted Metals X
    Tile X
    Glass X
    Coated Metals X
    Ceramics X
    Marble X
    Stainless Steel * X
    Brass * X
    Titanium * X
    Bare Metal * X
    * means the laser cannot engrave directly, you will need the help of the “thermark spray”, you can visit www.thermark.com for more information.

    Video

    FAQ

    No need. We’ve added a parameter library in the software, once you find out what settings is best for a certain material;you can record it in the parameter library. Next time you cut the same material, you just need to read it from the list.
    Both ok, as long as your operating system is Windows XP/2000/Vista/7/8/10.
    Our laser runs on Windows XP/2000/Vista/7/8/10 both 32bits and 64bits system. But it does not run on Mac OS.
    CorelDraw and AutoCAD are suggested. You can design all your artworks in these two software and then send to the RDWorks software to set the parameters easily.
    JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA,PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW
    Yes, you can take a photo by using a camera and then load the photo to the software directly and engrave it.
    the laser machine is ready to work, the exhaust fan and the air pump and the water pump are included. (But when you using a big power laser tube, it is suggested to buy a water chiller for cooling the laser tube) https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-mini60-laser-system.html https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-nova-laser-cutter.html
    As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too. https://www.thunderlaser.com.au/video/what-laser-cutter-can-create.html https://www.thunderlaser.com.au/video/how-to-use-your-laser-machine.html https://www.thunderlaser.com.au/video/how-to-use-your-laser-software.html
    No, our laser machine can do both cutting and engraving very well.You just need one machine for both kinds of jobs.
