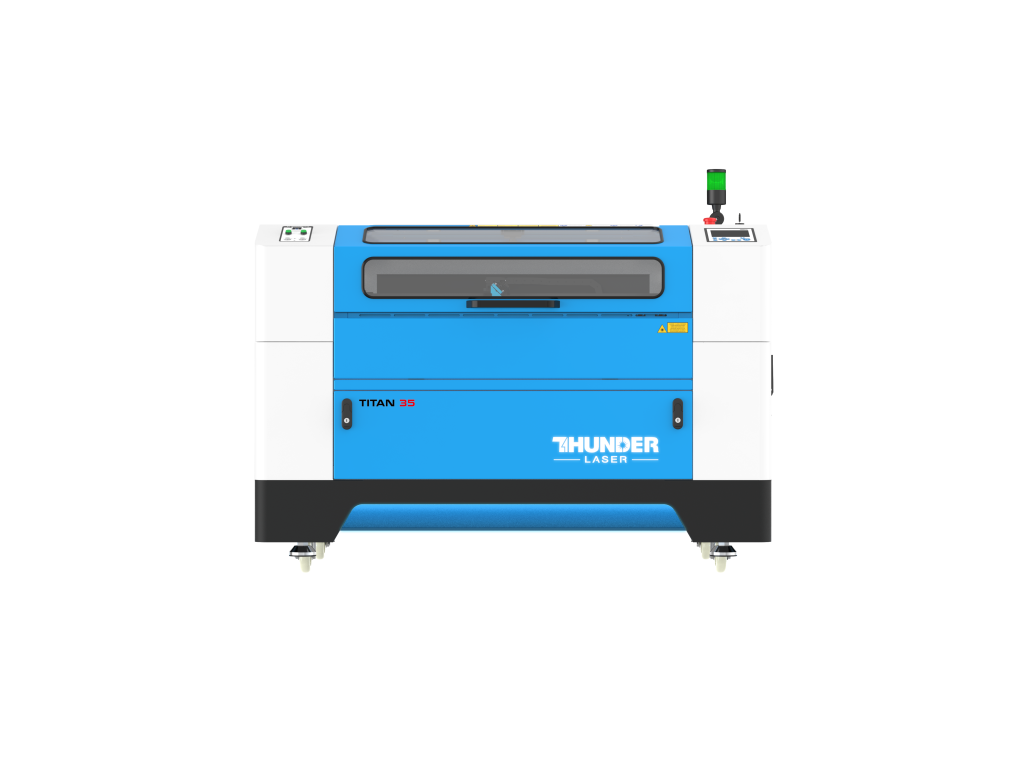

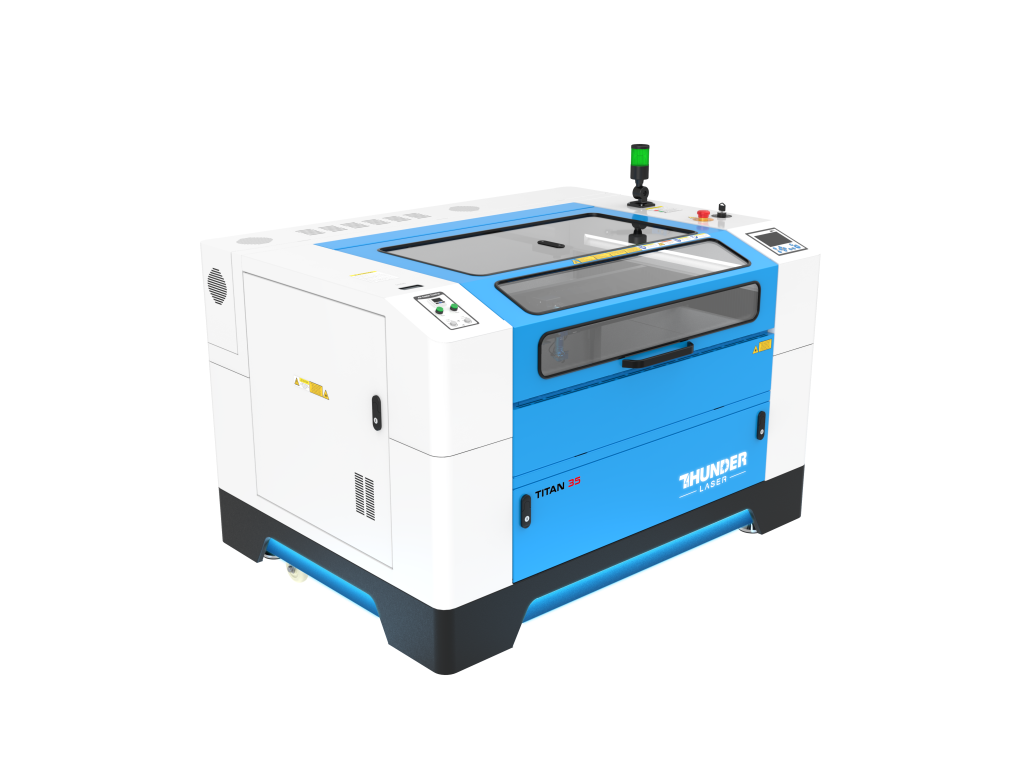

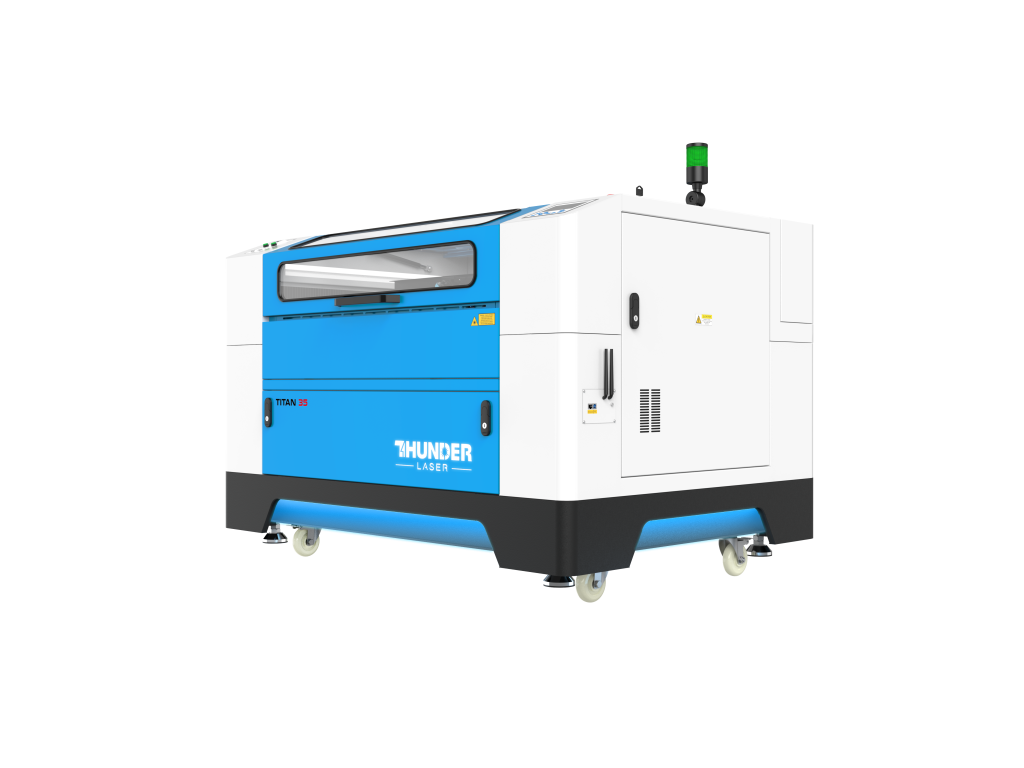

titan

A powerhouse laser machine engineered to outperform. With industrial-grade RF laser technology, precision components, and intelligent software integration, TITAN is built for professionals who demand the highest standard in engraving, cutting, and production versatility.

Titan Brochure

Standard Features

Technical Specifications

Materials

Machine Size

Optional Items

Standard Features

Our Standard Features

Metal RF Laser Tube

An impressive 2000 DPI resolution and an extended lifespan of up to 45,000 hours, the Metal-encased RF CO₂ tube Laser Tube delivers exceptionally high and stable laser beam quality. Offering superior performance and cost efficiency compared to traditional glass tubes.

High-Speed Motors – Ultra-Fast Productivity

With a rigid frame, servo motors, 3000 mm/s speed and 8 G acceleration, Titan powers through batch jobs. Quick-release heads and auto variable data features optimize production speed.

0.01 mm Precision

A rigid frame, servo motors, and RF CERAMICORE® tube deliver unmatched repeatability and crisp detail—ideal for high-end or intricate production demands.

Quad Air Assist System

Automatically adjusts airflow for engraving or cutting. Dual internal channels ensure clean results; external airflow protects optics and improves quality.

Integrated Software Support

Titan supports LaserMaker, RDWorks, and LightBurn. LaserMaker offers smart automation tools and parameter libraries for seamless, professional workflow management.

High-Resolution Camera

Equipped with two high-resolution cameras, Titan ensures a crystal-clear and precise view of your workspace. It significantly improves material alignment and design accuracy, making it ideal for handling intricate engraving or cutting projects with ease.

Dual Working Platforms

Honeycomb vacuum bed and knife-blade table offer material stability and minimize reflection, delivering cleaner, more accurate processing across various materials.

Wi-Fi Connection

Supports stable Wi-Fi communication for files, camera images, and control. Easy setup, less clutter—modern workshop ready.

Industrial-Grade Safety

Dual-channel lid sensors, laser interlocks, impact-resistant windows, and CE-compliant safety design ensure peace of mind during every operation.

65 mm Pass-Through Height

Supports tall workpieces up to 65 mm, expanding compatibility with thicker or stacked materials—ideal for more complex or varied jobs.

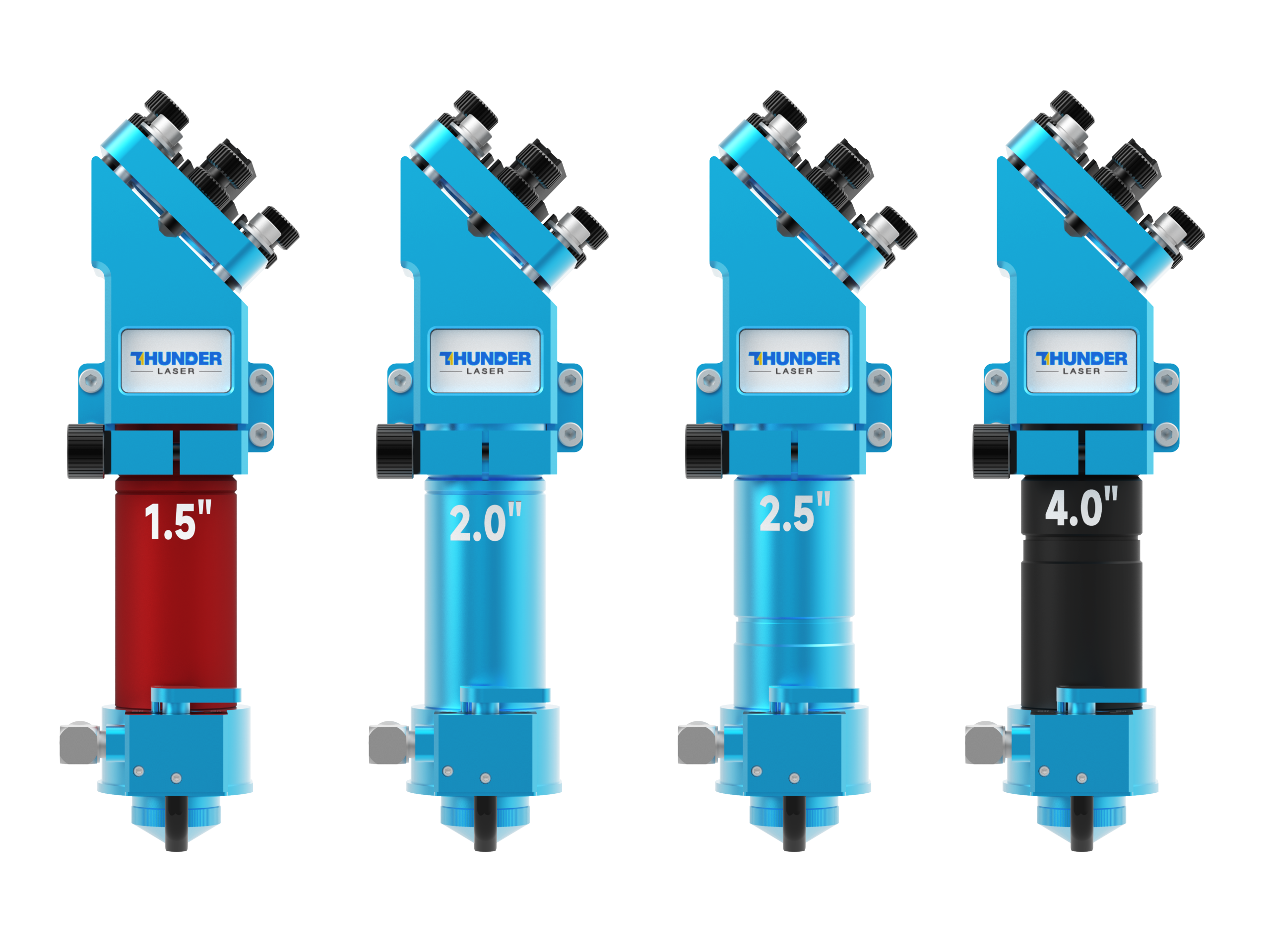

Laser Head Versatility

A high-quality laser head ensures superior laser beam output. Including the standard 2.5-inch lens, we offer four interchangeable lens sizes: 1.5 inches, 2.0 inches, and 4.0 inches. You can select the lens that best meets the requirements of your laser project.

Real-Time PM2.5 Monitor

The built-in sensor tracks PM2.5 levels, temperature, and humidity with high accuracy. Stay informed about your workspace air quality in real time.

Technical Specifications

Specification	Titan 27	Titan 35	Titan 51	Titan 63
Dimension	1350×1070×1100 mm (53.15″ × 42.13″ × 43.31″)	1550×1170×1110 mm (61.02″ × 46.06″ × 43.70″)	1950×1470×1110 mm (76.77″ × 57.87″ × 43.70″)	2250×1570×1110 mm (88.58″ × 61.81″ × 43.70″)
Working Area	700×500 mm (27.56″ × 19.69″)	900×600 mm (35.43″ × 23.62″)	1300×900 mm (51.18″ × 35.43″)	1600×1000 mm (62.99″ × 39.37″)
Pass-through Door	65 mm	65 mm	65 mm	65 mm
Z-depth	230 mm	230 mm	230 mm	230 mm
Laser Type	50 W (Std), 60-120 W (Opt)	60 W (Std), 50-120 W (Opt)	80 W (Std), 50-120 W (Opt)	100 W (Std), 50-120 W (Opt)
Dual-Laser System	No	No	No	No
Cooling Method	Air Cooling
Max Speed	3000 mm/s Engraving & 300 mm/s Cutting
Acceleration Speed	8 G (80 000 mm/s²)
Motion Control System	AC Servo Motor for X/Y Axis
Positioning Accuracy	≤ 0.01 mm
Top Camera	1× 5 MP	1× 5 MP	2× 5 MP	2× 5 MP
Head Camera	1× 5 MP Mark Point Camera
Control Panel	5-inch Capacitive Touch Screen
Internal Memory	1 GB (1024 MB)
Operating System	Windows & macOS
Lens	2.5″ (Std), 1.5″, 2.0″, 4.0″ (Opt)
Safety Level	FDA & CE Certification
Warning Indicator Light	Green: Standby / Safe \| Red: Processing / Hazard
Fire Alarm Buzzer	Auto trigger at 55 °C platform temperature
Lid Material	Transparent Tempered Glass
Lid-opening Protection	Yes
Side Panel Interlocks	Yes
Exhaust System	1× 550 W Integrated Centrifugal Fan		1× 750 W Integrated Centrifugal Fan
Dust-proof Design	X/Y Axis Closed Rail + Accordion Cover
Air Assistance	Inside & Outside Dual-Channel Air Assist
Auto Focus	Yes
Rotary Accessible	Yes
Software	LaserMaker, RDWorks, LightBurn

Materials

If your material is not in the below list, our Applications Team would be happy to assist you to test it.

Material	Cut	Engrave
Basswood	√	√
Cherry Wood	√	√
Birch Ply	√	√
MDF	√	√
Acrylic	√	√
Glass	×	√
Anodized Aluminum	×	√
POM	√	√
Rubber	√	√
Cotton	√	√
Denim	√	√
Canvas	√	√
Leather	√	√
Marble	×	√
Ceramic	×	√
Cardboard	√	√
Paper	√	√
EVA Foam	√	√
Cork	√	√
Bamboo	√	√
Coated Metals	×	√

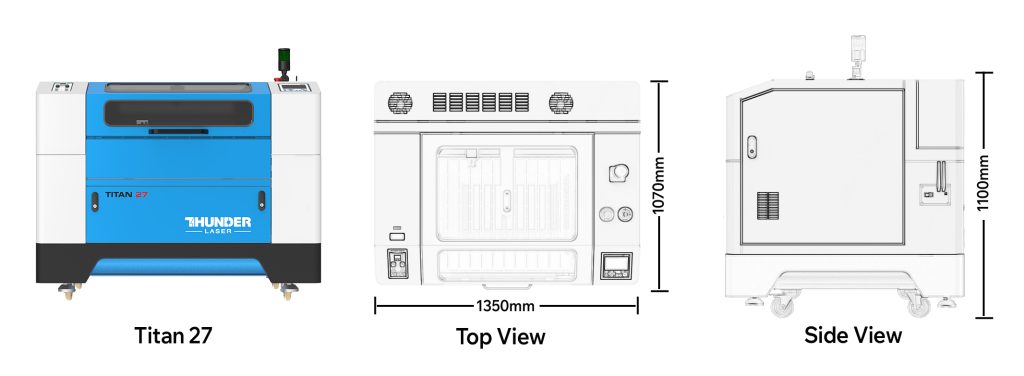

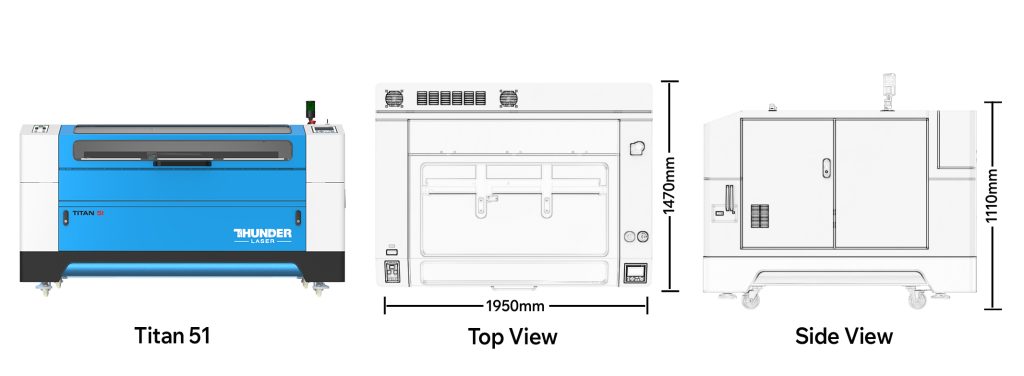

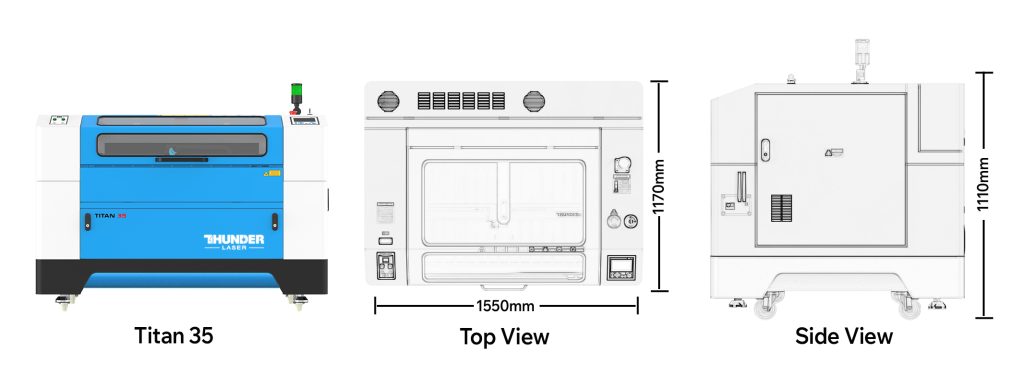

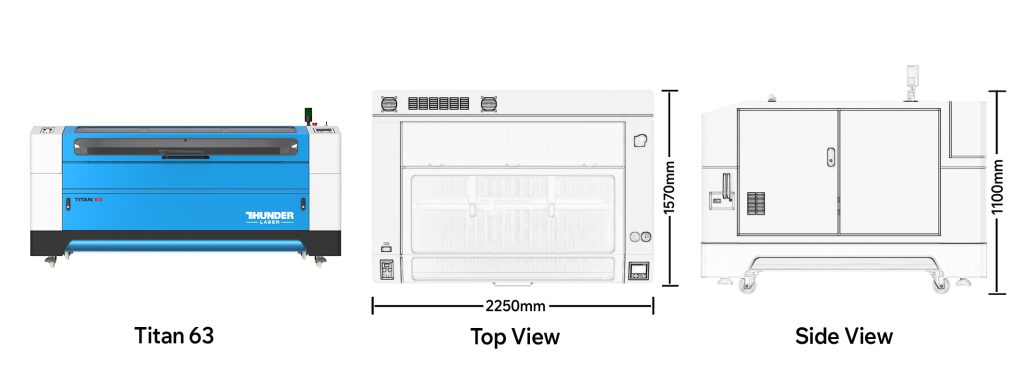

Machine Size

Optional Items

Rotary for Titan

It enables precise processing on cylindrical objects for Titan, ensuring accurate processing of bottles, glasses, and more.

Focus Lenses

Lenses available for all project types.

Titan Series, Redefining Industrial Laser Machine

High-precision RF Tube with Lifespan UP TO 10,000h.
3,000mm/s Engraving Speed, 8G Accelaration
Unmatched Precision with 0.01mm Repeatability.
Cleaner Edge Comes with Quad Air-assist System
Adaptable Bed, Ready for Any Material.
No Cables, No Limits—Work Anywhere.
Certified Safety, Peace of Mind Guaranteed.
Bigger Workpieces, Bigger Opportunities.

Application

Our Desktop Laser Engraver machines empower you to push the boundaries of endless possibilities.

Frequently Asked Questions

1.What materials can Titan Series engrave, cut, and mark?

Titan supports a wide range of materials, such as Wood, acrylic, leather, paper, fabric, rubber, glass, and more.

2.Is Titan Series suitable for industrial-scale production?

Yes. Titan is built with robust industrial components, optimized airflow, and motion systems for continuous, high-volume operation. It’s ideal for factory use, OEMs, and professional workshops.

3.What industries is Titan Series designed for?

Titan serves a wide range of industries: signage, prototyping, electronics, medical device marking, personalized gifts, education, awards, packaging, and more.

4.How does Titan Series compare to traditional single-laser machines?

Titan eliminates the need for separate machines for metals and non-metals. It saves space, reduces cost, and boosts workflow flexibility. Compared to single-laser systems, Titan offers unmatched versatility and future-proof capabilities.

5.What’s the difference between Titan and Titan Pro?

The key difference lies in the laser configuration:

Titan is equipped with a single laser source, CO₂ laser source. It’s ideal for users who primarily work with either non-metal materials.
Titan Pro features a dual-laser system — both CO₂ and fiber lasers integrated into one machine. This allows seamless processing of both non-metal and metal materials without switching equipment, making it perfect for high-mix production, prototyping, or advanced workshops.

In short:

Titan = single-source, specialized
Titan Pro = dual-source, all-in-one versatility

6.Can the Titan Series engrave rotary tumblers?

Yes, the Titan Series is fully compatible with rotary attachments. It can engrave tumblers up to 40 oz in size with precision and ease. Perfect for customizing cups, bottles, mugs, and more.
