Nova Plus 63

Thunder Laser Nova Plus 63

[High-precision & High-speed RF Laser Engraver]

From $2,2900

The Nova Plus 63 is a next-generation CO₂ laser machine designed for those who demand unmatched precision, speed, and reliability. With a spacious working area, enhanced acceleration, and superior motion control, Nova Plus 63 handles everything from intricate details to complex cuts with ease. Whether you're working with wood, acrylic, leather, or other non-metal materials, Nova Plus 63 ensures consistent, high-quality results—project after project.

Nova Plus Brochure

Nova Plus 63

Nova Plus Brochure.pdf

Standard Features

Technical Specifications

Materials

Machine Size

Optional Items

Standard Features

Our Standard Features

Metal RF Laser Tube

An impressive 2000 DPI resolu-tion and an extended lifespan of up to 10,000 hours, the Metal RF Laser Tube delivers exceptionally high and stable laser beam quality. Offering superior performance and cost efficiency com-pared to traditional glass tubes.

High-Resolution Camera

Equipped with a standard 5M camera, Nova Plus ensures a crystal-clear and precise view of your workspace. It sig-nificantly improves material alignment and design accuracy, making it ideal for handling intricate engraving or cut-ting projects with ease.

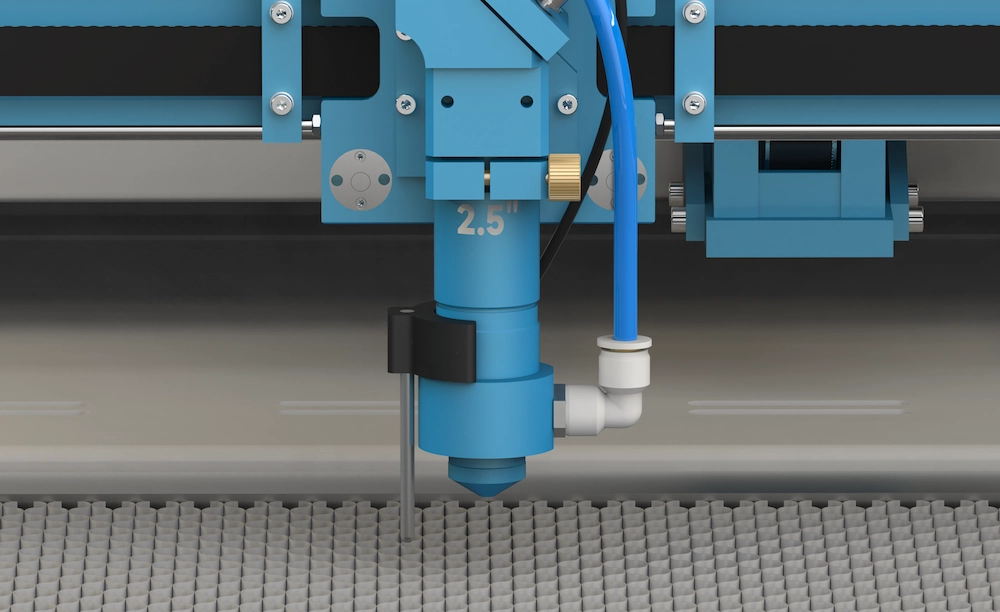

Touch-Based Auto Focus

Effortlessly achieve precise focus anywhere within the laser head’s reach. This touch-based method is unaffected by environmental factors or uneven material surfaces, making it perfect for precise focusing even on transparent materials.

Laser Head Versatility

A high-quality laser head ensures su-perior laser beam output. Including the standard 2.5-inch lens, we offer four interchangeable lens sizes: 1.5 inches,2 inches, 2.5 inches, and 4 inches. You can select the lens that best meets the requirements of your laser project.

Air Assist and Air Pressure Monitoring

The Air Volume Sensor provides re-al-time air pressure monitoring, allow-ing you to adjust the air assist accord- ingly. Together, these features main-tain stable air pressure to prevent ma-terial combustion caused by low pressure, safeguarding both the ma- chine and the operator.

Enhanced Air Intake

With an air vent area of up to 15,080 cm², the enhanced air intake facili-tates better airflow, effectively reduc-ing smoke and dust during laser pro-cessing. This helps create a cleaner work environment and ensures more stable processing results.

Technical Specifications

Specification		Nova Plus 63
Engraving / Working Area		16001000225mm (62.9″ × 39.3″ × 8.9″)
Max Part Size		Pass through closed: 16311055225mm (64.2″ × 41.5″ × 8.9″) Pass through open: 1660∞20mm (65.4″ × ∞ × 0.8″)
Machine Size		222015521115mm (87.4″ × 61.1″ × 43.9″)
Laser Wattage		80W
Internal Memory		Store multiple files up to 1 GB. Engrave any file size.
Laser Source		CO2 RF Metal Tube, Unmatched laser precision. Average lifespan: 10,000 working hours
Electrical Requirements		110v AC 60Hz Single Phase, dedicated 20A circuit
Air Assist		Dual air assist and air volume meter.
Software		LightBurn Software included for two computers; supports Windows, Mac, and Linux
Red Dot Pointer		Shows where laser will fire; easy positioning
Camera System		Comes with an over-head camera as standard
Operating Modes		Optimized raster, vector, or combined modes
Easy Adjustable Home		New home position can be set by hand for items not easily placed in the top corner
Motion Control System		LeadShine Hybrid-Servo Motors, engraving speeds up to 1,200mm/s (46.8″/second)
Resolution		Up to 1,000dpi with included 2.5″ head or 2,000dpi with 1.5″ head
Safety		Open cover protection, no-air assist protection, heat alarm system
Auto Focus		Cone-head touch auto focus system
Cooling		Air Cooling
Motorized Table		Includes removable honeycomb and solid metal blade (knife-style) bed
Laser Heads		2.5″ Head / Lens included; Optional 1.5″, 2.0″, and 4.0″ heads available
TL-Timer™ (Smart Board)		Relay switch controls exhaust and air assist, stops accessories when laser is not working
Warning Light		Red light means working, and green light means safe
Warranty		The whole machine is under warranty for two years, and the RF tube is for one year

Materials

If your material is not in the below list, our Applications Team would be happy to assist you to test it.

Materials	Engrave	Cut
Wood	√	√
Acrylic	√	√
Delrin	√	√
Cloth	√	√
Leather	√	√
Mat Board	√	√
Melamine	√	√
Paper	√	√
Mylar	√	√
Pressboard	√	√
Rubber	√	√
Wood Veneer	√	√
Fiberglass	√	√
Plastic	√	√
Cork	√	√
Corian	√	√
Twill	√	√
Anodized Aluminum	√	X
Painted Metals	√	X
Tile	√	X
Glass	√	X
Coated Metals	√	X
Ceramics	√	X
Marble	√	X
Stainless Steel	X	X
Brass	X	X
Titanium	X	X
Bare Metal	X	X

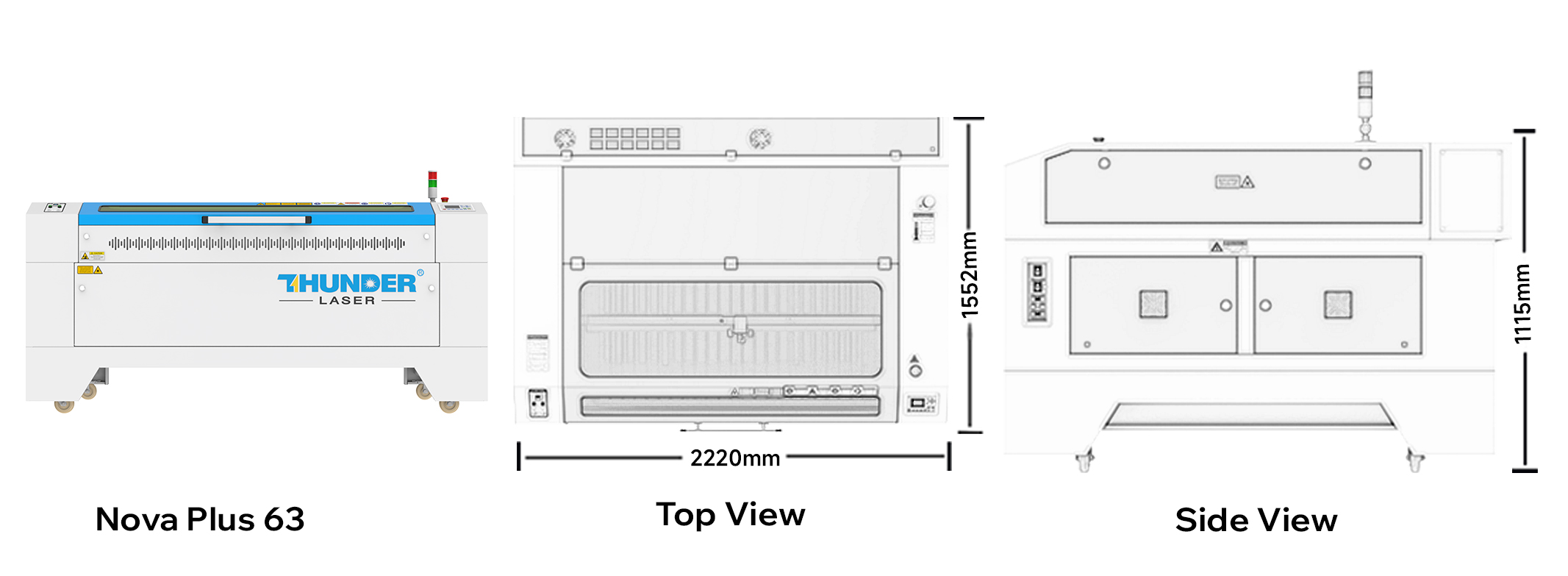

Machine Size

Optional Items

4 laser head

In addition to the standard 2.5-inch lens, Nova Plus supports four interchangeable lens options — 1.5″, 2″, 2.5″, and 4″ — allowing you to choose the perfect setup for any engraving or cutting task.

Rotary

A rotary tool allows for engraving cylindrical objects such as glass, wood or metal products like tumblers, cups, mugs, wine bottles or pens

HR head

Engrave high precision designs, photos, and 3D engraving.

Lightburn DSP License Key

Thunderlaser exclusive lightburn DSP license key

Why Choose Nova Plus Series Laser Engraving Machines

RF laser tube, far more efficient than glass when engraving Up to 4x faster and cleaner engraves than hobbyist machines True enterprise-grade quality for a fraction of the cost

Application

Our Desktop Laser Engraver machines empower you to push the boundaries of endless possibilities.

Frequently Asked Questions

What are the differences between the Nova Plus and the Nova? How should I choose?

The key difference between the Nova Plus and the Nova is the upgrade from a CO₂ glass tube to a CO₂ RF tube, delivering higher engraving precision and enhanced cutting power. This also increases speed from 1000 mm/s to 1200 mm/s. Thanks to the RF tube’s advanced capabilities, air cooling is sufficient, eliminating the need for an additional water chiller.

	Nova Plus Series	Nova Series
Laser Tube	RF Metal Tube (2000DPI 10,000 hour lifespan)	Glass Tube (500DPI 2000-4000 hour lifespan)
Acceleration	2.5G	1G
Speed	1200mm/s	1000mm/s
Auto focus	Easier focusing, suitable for transparent acrylic, with auto-focusing capability anywhere.	Not suitable for transparent acrylic, with a fixed focusing area.
Camera	Standard	Optional
Cooling	Alr Coollng	Water Cooling

Can I upgrade my Nova to the Nova Plus?

No, upgrading from the Nova to the Nova Plus requires structural changes to the machine and must be done at the factory.

How do I choose the right laser machine for my needs?

Choosing the right laser can be daunting, but we are here to help! The best way to figure this out is to call us or set up a time to speak to one of our laser experts. They will ask you questions about what you’d like to create and help you find a machine to suit your needs and budget.

The main things to consider are:

How much space do I have?
What materials do I want to cut or engrave?
How thick of material do I want to be able to cut?
What is my budget?
Am I going to be doing production runs or one-off projects?

We’ve written a more in-depth article on this here.

What is the maximum power available for the Nova Plus Series?

The Nova Plus Series currently offers a maximum power of 120W, equipped with a high-frequency RF CO₂ laser tube. Compared to traditional glass tubes, RF (radio frequency) tubes deliver more stable power, longer lifespan, and superior engraving precision—especially for fine details and high-speed production. With 120W of cutting power and the reliability of an RF source, the Nova Plus is an excellent choice for businesses that need clean results, long-term durability, and faster job turnaround times across a wide range of materials.

Is the Nova Plus suitable for large-scale production?

Absolutely. The Nova Plus is built for continuous, high-volume work. The RF laser tube maintains stable output even over long jobs, while the machine’s robust frame and motion control system ensure precise, repeatable performance. It’s ideal for businesses producing signage, packaging, custom products, and more.

What is the warranty for the Nova Plus and its RF tube?

The machine comes with a 2-year warranty. The RF tube usually carries a 1-year warranty depending on the supplier.

What kind of support is available after purchase?

We provide free training, responsive technical support within 24 hours, and a global agent network to assist you locally.

Is the Nova Plus worth buying?

Yes—the Nova Plus is absolutely worth the investment, especially for users who need a laser machine built for high-precision, high-volume work.

Here’s why many professionals choose the Nova Plus:

✅ Industrial-Grade Performance

The Nova Plus is equipped with a high-frequency RF laser tube, offering faster and more precise engraving, and a longer lifespan than traditional glass tubes. It’s built for consistent output, whether you’re doing intricate engraving or full-depth cutting.

✅ Lower Maintenance, Higher Uptime

RF systems are more stable and require less frequent alignment or tube replacement. That means less downtime and fewer interruptions to your workflow.

✅ Ideal for Growth

Whether you’re scaling your product line, fulfilling custom orders, or running batch production, the Nova Plus gives you the speed, accuracy, and consistency you need to grow your business with confidence.

✅ Safety + Workflow Efficiency

With features like full enclosure, dual-camera system, autofocus, touchscreen controls, and offline-capable software, the Nova Plus is not only powerful—but also safe and easy to operate, even in shared workspaces or teaching environments.

In short: If you’re looking for a laser system that combines industrial-grade power with user-friendly design, the Nova Plus offers outstanding long-term value. It’s a smart upgrade for makers, schools, and manufacturers who care about both quality and efficiency.

Is the Thunder Nova Plus Series difficult to set up?

Not at all! In fact, Nova Plus Series features user-friendly design and easy setup process. At trade shows, our team can go from unboxing to fully operational in just 30 minutes—and you can, too. Unlike many lasers that necessitate a complex alignment upon arrival, our nova plus series are robustly constructed to maintain alignment during transit. This design philosophy ensures that if a machine is prone to misalignment during shipping, it’s likely to require frequent realignments, leading to lost time and unnecessary frustration for you. Inside the box, you’ll find detailed instructions and all essential tools included. And if you need help, our support team is only a call away.
