Mini 60



Our desktop Mini 60 40 watt laser engraver is a suitable tool for basic makers to start. Cutting, marking and engraving is just the beginning. Combine to create a huge array of designs and products.




Price:from$6700




Standard Features

Image 01

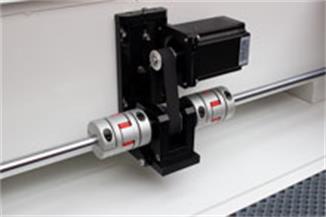

Stepper motors

600mm/s speed for engraving photo, super smooth vector cutting quality.

Image 01

Honey comb table

Reduces underside reflections.

Image 01

Pass-through door

Easy to cut a super long material.

Image 01

Air adjustment

Control air volume.

Image 01

Tempered glass

co2 laser can’t cut through Tempered glass, protect your machine security.

Image 01

LCD panel

Set speed, power, and more directly from the LCD panel.

Image 01

Connection ways

High-speed Ethernet line or the USB cable line.

Image 01

Laser software

RDWorksV8 laser software.

Image 01

Calculate working time

Working time preview.

Image 01

3D Engrave

Engrave high quality 3D photos directly.

Image 01

5x open cover protection

Laser will stop working if you open the front cover.

Image 01

Emergency stop

Turn off the machine immediately when there is an accident.

Image 01

Heat alarm detector

The heat detector customized by Thunder Laser has the accurate judgment of the abnormal temperature.

Image 01

Alarm Lamp

Show the work state and tell when the job is done, more safe for you.

Image 01

Water protection

Laser will stop working if the water cooling system is not working

Image 01

Smart board

Control the exhaust fan,air assist, and alarm lamp automaticly, energy saving

Image 01

Breaker

There is an internal circuit breaker to protect the instrument from overload.

Image 01

Water Chiller

keep the temperature to ensure the stability of laser working.

Image 01

Air assist

Blowing air to prevent the material being burned

Image 01

Exhaust system

Ensure the work pieces and laser cutter machine inside be clean.

Technical Specifications

Laser System Mini 60
Working Area 23.6“x 15.7“ (600 x 400 mm)
Max Part Size (W x L x H) Door Closed

27.6“x 20.9“x 0.8“ (700 x 530 x 20mm)
Pass Thru

27.6“ x ∞“ x 0.8“ (700 x ∞mm x 20 mm)
Table Size 27.6“x 20.9“ (700 x 530mm)
Z-Axis Height FIXED
Dimensions(W x D x H) 1100x830x610mm
Net Weight 110kgs (240lbs)
Laser Type 40W Sealed Co2 Glass Laser Tube
Cooling Water Cooled
Motion Control System High-Speed Stepper Motors
Maximum Speed 600mm/S(23.6 IPS)
Speed and Power Control(engraving depth)

Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
Operating Modes Optimized raster, vector, and combined mode
Resolution(DPI) User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer Interface Ethernet and USB Connection
Compatible Operating Systems Windows, Mac, and Linux (Mac and Linux with LightBurn Software)
Buffer Memory 128MB Standard
Display Panel 3.5″ LCD panel showing current file, total working time, laser power, speed, etc…
Electrical Requirements 110VAC 60 Hz, single-phase, 15-25A Depending on model
Ventilation System Integral exhaust fan. There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.
Max Work Height 6” / 15.24 mm
Max. Speed RASTER: 23.6”/sec. (600 mm/sec) VECTOR: Varies with job
Workpiece table Solid metal blades & Honeycomb table
Max. table load 20kg / 44lbs
Standard Head 2.0” (50.8mm)
Positioning accuracy: 0.05mm
Minimal symbol size: 1mmx1mm

Machine Size

nova24 size

Optional Items

nova35
Air-pressure control sensor
The Air-pressure control sensor made by Thunder Laser can measure the air pressure and indicate the air-pressure value in real time.it can set to measure even 0.01Mpa air pressure, it’s valid for both air pump and high pressure air compressor…
nova35
Air compressor
The high pressure and low noise air compressor offered by Thunder Laser co2 laser engraving machine includes two parts: the high pressure and low noise air compressor and the water separator…

Materials

If your material is not in the below list, our Applications Team would be happy to assist you to test it.

Materials Engrave Cut
Wood √ √
Acrylic √ √
Delrin

√

√

Cloth

√

√

Leather √ √
Mat Board √ √
Melamine

√

√

Paper √ √
Mylar √ √
Pressboard √ √
Rubber √ √
Wood Veneer √ √
Fiberglass √ √
Plastic √ √
Cork √ √
Corian √ √
Twill √ √
Anodized Aluminum √ X
Painted Metals √ X
Tile √ X
Glass √ X
Coated Metals √ X
Ceramics √ X
Marble √ X
Stainless Steel * X
Brass * X
Titanium * X
Bare Metal * X

* means the laser cannot engrave directly, you will need the help of the “thermark spray”, you can visit www.thermark.com for more information.

Video

FAQ

1.Do I have to record all the cutting/engraving parameters for different materials in a paper?

No need. We’ve added a parameter library in the software, once you find out what settings is best for a certain material;you can record it in the parameter library. Next time you cut the same material, you just need to read it from the list.

2.Does your laser run from a laptop or Desktop PC?

Both ok, as long as your operating system is Windows XP/2000/Vista/7/8/10.

3.Does your laser run in Windows XP?

Our laser runs on Windows XP/2000/Vista/7/8/10 both 32bits and 64bits system.But it does not run on Mac OS. But it does not run on Mac OS.

4.What software is suggested to design my jobs?

CorelDraw and AutoCAD are suggested. You can design all your artworks in these two software and then send to the RDWorks software to set the parameters easily.

5.What files is the software compatible with?

JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA,PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW

6.Will it engrave from a jpeg image?

Yes.

7.Can I take a picture and engrave the image on an object without any hassles?

Yes, you can take a photo by using a camera and then load the photo to the software directly and engrave it.

8.Does machine comes ready to work?

the laser machine is ready to work, the exhaust fan and the air pump and the water pump are included. (But when you using a big power laser tube, it is suggested to buy a water chiller for cooling the laser tube)

https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-mini60-laser-system.html

https://www.thunderlaser.com.au/how-to-use-your-laser-machine/how-to-setup-your-nova-laser-cutter.html

9.How much time do I need to spend on learning how to run the laser machine?

As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too.

https://www.thunderlaser.com.au/video/what-laser-cutter-can-create.html

https://www.thunderlaser.com.au/video/how-to-use-your-laser-machine.html

https://www.thunderlaser.com.au/video/how-to-use-your-laser-software.html

10.How to send a job to the machine?

Please watch this video directly to learn the detail

https://www.thunderlaser.com.au/video/how-to-use-your-laser-software.html

11.Do I need separate laser systems for engraving and cutting?

No, our laser machine can do both cutting and engraving very well.You just need one machine for both kinds of jobs.
