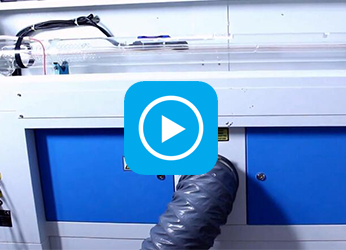

How to adjust the laser beam path


Image-1

How to install new laser tube


Laser cutter has a poor engraving quality/edge

Release Time:2016/05/04 troubleshooting Browsing Times:1186

Laser cutter has a poor engraving quality

If your laser cutter’s engraving quality is very poor, it has the following possibilities:

A.Laser head is loose

Please fasten the laser head as below

Laser cutter has a poor engraving quality

B.The focus lens or the reflective mirrors are loose

Please fasten the focus lens and the three reflective mirrors as below

Laser cutter has a poor engraving quality

C.The material is loose

Use some magnet or heavy items to fasten the material

Laser cutter has a poor engraving quality

D.The machine shakes

Please fasten the four wheels and the foot cup

Laser cutter has a poor engraving quality

E.X axis belt loose

Please do these two tests

Test 1: engrave a 50x50mm square and set the scan mode as X_unilateralism

Test 2: engrave a 50x50mm square and set the scan mode as X_swing

Laser cutter has a poor engraving quality

If the engraving edge of test 1 is smooth and test 2 is not, that means the belt is loose.Please fasten the belt as below(① fix the belt; ②adjust the tension of the belt;)

Laser cutter has a poor engraving quality

F.Please set the Scan Mode to X-unilaterism
